T8846C ICS Triplex Speed Monitor Input Field Termination Assembly (FTA)

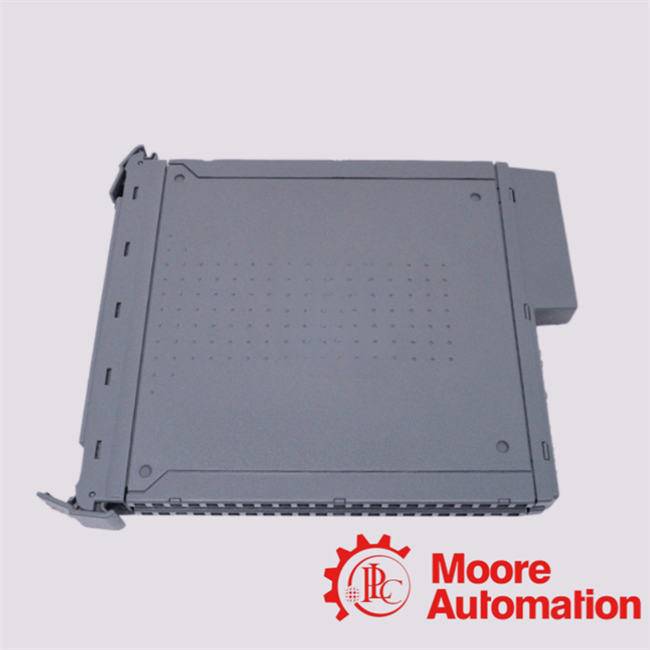

The T8846C is an ICS Triplex Speed Monitor Input Field Termination Assembly (FTA) designed to provide a robust and structured interface between field-mounted rotational speed sensors and safety-critical control systems within Triple Modular Redundant (TMR) architectures. It serves as the primary electrical termination and signal distribution point for speed measurement channels used in turbine, compressor, and other rotating machinery protection systems.

Within ICS Triplex safety instrumented system (SIS) environments, the T8846C ensures that high-frequency pulse signals generated by devices such as proximity probes, magnetic pickups, or tachometers are accurately received, terminated, and routed to redundant control processors. This enables precise rotational speed acquisition for overspeed protection, machine monitoring, and real-time diagnostic analysis.

The T8846C Speed Monitor FTA is engineered to maintain signal integrity through controlled termination impedance, structured channel organization, and industrial-grade noise immunity design principles. It minimizes signal distortion, prevents cross-channel interference, and ensures stable transmission of pulse signals in electrically harsh industrial environments such as power plants, oil refineries, and petrochemical facilities.

As part of the ICS Triplex architecture, the T8846C supports TMR-based redundancy principles, ensuring that speed signals are consistently delivered across multiple processing channels without degradation. This redundancy-aware design enhances system availability and ensures deterministic behavior in safety-critical overspeed detection applications.

Mechanically, the T8846C is implemented as a modular field termination unit, allowing organized wiring of multiple speed input channels while simplifying installation, maintenance, and system scalability. It provides clear separation of field wiring and control system electronics, enhancing operational safety and serviceability.

In summary, the T8846C ICS Triplex Speed Monitor Input Field Termination Assembly (FTA) is a mission-critical interface component that enables high-integrity rotational speed signal acquisition, redundancy-aligned signal distribution, and reliable integration into TMR safety systems, ensuring accurate real-time monitoring and protection of high-speed rotating machinery in industrial applications.

1. What signal interfacing architecture defines the operational role of the T8846C within ICS Triplex speed monitoring subsystems?

The T8846C functions as a Speed Monitor Input Field Termination Assembly (FTA), providing a structured electrical interface between field-mounted speed sensing devices and ICS Triplex safety control modules, ensuring deterministic signal routing within high-integrity turbine and rotating machinery protection systems.

2. How does the T8846C manage high-frequency pulse signal conditioning in rotational speed measurement applications?

The T8846C supports pulse-based speed signal termination and distribution, enabling clean transmission of frequency-dependent signals from proximity probes, magnetic pickups, or tachometer sensors into redundant control processing units without signal distortion or timing jitter.

3. What role does the T8846C play in safety-critical overspeed protection architectures?

The T8846C acts as a primary field interface layer for overspeed detection systems, ensuring that turbine rotational speed signals are accurately captured, electrically isolated, and reliably forwarded to TMR safety logic for real-time overspeed trip evaluation.

4. Why is the T8846C considered a foundational termination node in ICS Triplex speed monitoring ecosystems?

The T8846C is foundational because it provides structured signal termination, channel organization, and interface standardization, enabling scalable integration of multiple speed sensors into a centralized safety monitoring framework.

5. How does the T8846C ensure signal integrity in high-noise industrial environments?

The T8846C ensures signal integrity through electromagnetic shielding compatibility, controlled impedance routing, and optimized terminal layout design, minimizing susceptibility to EMI/RFI interference commonly found in turbine halls and compressor stations.
