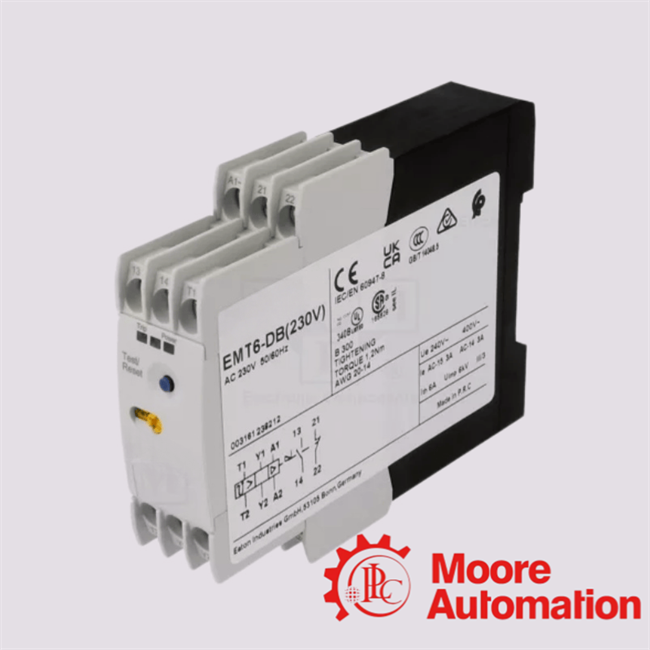

EMT6-DB 066401 Overload Relay module

The EMT6-DB 066401 Overload Relay Module is a thermistor-based motor protection relay developed for advanced thermal monitoring and overload safeguarding in industrial automation systems. Manufactured by Eaton, the EMT6-DB 066401 belongs to the EMT6 series and is specifically engineered to protect electric motors and machinery from overheating caused by excessive thermal stress or abnormal operating conditions. It utilizes PTC thermistor sensing technology to continuously supervise motor winding temperature and trigger a protective response when critical thermal thresholds are exceeded.

The EMT6-DB 066401 overload relay module operates on a 230 V AC supply at 50/60 Hz and supports manual or remote reset functionality, providing greater flexibility in industrial control architectures. It also incorporates a test button, LED status indication for mains and fault signaling, and a lock/reset selector mechanism for improved operational diagnostics and system maintenance.

Designed for installation in industrial control panels, the EMT6-DB 066401 can be conveniently mounted on a DIN top-hat rail according to IEC/EN 60715, allowing seamless integration into motor control cabinets and machine protection systems. The module features one normally open (NO) contact and one normally closed (NC) contact, supporting versatile signaling and control applications.

Additionally, the EMT6-DB 066401 overload relay module offers strong environmental resilience with an operating temperature range of −25°C to +60°C (open installation) and compliance with multiple international standards including IEC/EN 60947, UL 508, CE, CSA, and VDE 0660, ensuring dependable performance in demanding industrial environments.

Technical Data

1. What distinguishes the EMT6-DB 066401 as a thermistor-based overload relay module for machine protection?

EMT6-DB 066401 is an advanced thermistor overload relay engineered for proactive motor and machine protection through thermistor monitoring. Unlike conventional thermal overload relays, it evaluates temperature-dependent resistance changes from PTC thermistors to identify overheating conditions with enhanced sensitivity and operational precision. It is specifically designed for industrial machinery requiring thermal anomaly detection and fault mitigation.

2. How does the EMT6-DB 066401 technically regulate thermal overload protection?

The EMT6-DB 066401 operates by continuously supervising thermistor resistance values embedded within motor windings. When the resistance surpasses the designated trip threshold of approximately 3600 Ω, the relay initiates a protective interruption sequence to prevent thermal degradation, winding insulation failure, or catastrophic motor damage. The reset resistance is approximately 1600 Ω, enabling controlled restoration after fault clearance.

3. Why is the EMT6-DB 066401 considered advantageous for mission-critical motor protection architectures?

The EMT6-DB 066401 offers superior thermal monitoring granularity, reduced false-trigger probability, and enhanced operational resilience in demanding industrial ecosystems. Its incorporation of manual or remote reset functionality, integrated LED fault diagnostics, and a dedicated test button significantly elevates system maintainability and diagnostic transparency.

4. Which electrical supply prerequisites must be satisfied for the EMT6-DB 066401?

The EMT6-DB 066401 requires a 230 V AC control supply voltage at 50/60 Hz. The module is not designed for DC control voltage operation, ensuring stable functionality under alternating current environments commonly deployed in industrial automation infrastructures.

5. What operational contact configuration does the EMT6-DB 066401 incorporate?

The EMT6-DB 066401 integrates one normally open (NO) contact and one normally closed (NC) contact, facilitating versatile integration into industrial control circuits. Its rated operational current reaches 3 A across various AC operational classes, supporting reliable switching performance for protection signaling and control logic.
