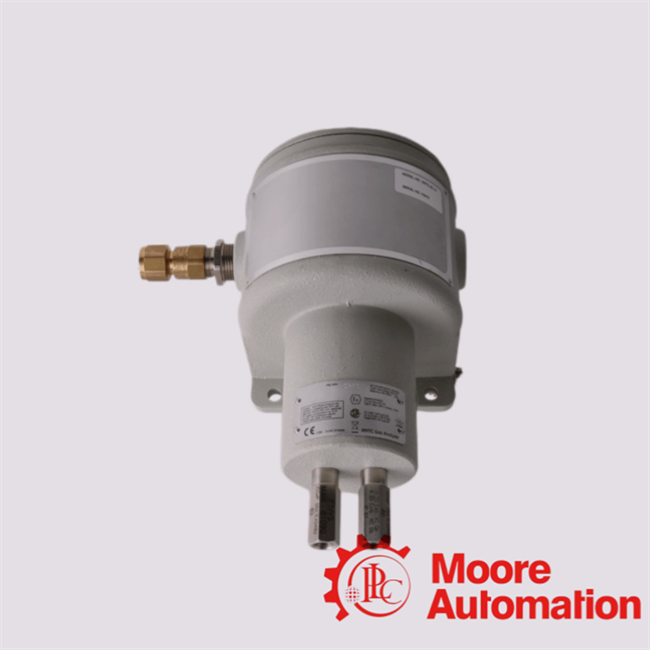

XMTC-62-11-0 GE Thermal Conductivity Binary Gas Transmitter

Overview

The XMTC-62-11-0 is a microprocessor-based thermal conductivity gas analyzer/transmitter designed by GE Panametrics (Baker Hughes). It is engineered for continuous online measurement of binary gas mixtures, utilizing the principle of thermal conductivity differential sensing to determine gas composition in real time.

The instrument is widely deployed in industrial process control, gas quality monitoring, and safety-critical applications, particularly where hydrogen, helium, methane, or carbon dioxide mixtures must be precisely analyzed.

Core functional architecture includes:

• Dual thermistor Wheatstone bridge sensing system
• Temperature-controlled measurement chamber
• Digital signal processing for linearized output
• Industrial communication interfaces (e.g., 4–20 mA, RS232/RS485 in system variants)

FAQ about XMTC-62-11-0

1. What is the fundamental measurement principle of the XMTC-62-11-0 GE thermal conductivity binary gas transmitter?

The XMTC-62-11-0 GE thermal conductivity binary gas transmitter operates based on differential thermal conductivity detection, where two precision thermistors compare heat loss rates between reference and sample gases to infer compositional variation.

2. How does the XMTC-62-11-0 GE transmitter achieve high-precision gas composition quantification?

The XMTC-62-11-0 GE transmitter achieves precision by employing a temperature-stabilized Wheatstone bridge configuration, minimizing drift and enabling highly linear correlation between thermal conductivity variation and gas concentration.

3. Why is the XMTC-62-11-0 GE thermal conductivity binary gas transmitter suitable for hydrogen-rich environments?

The XMTC-62-11-0 GE thermal conductivity binary gas transmitter is particularly effective for hydrogen applications because hydrogen exhibits extremely high thermal conductivity contrast relative to reference gases, enabling sensitive binary mixture discrimination.

4. What industrial-grade environmental robustness does the XMTC-62-11-0 GE provide under harsh process conditions?

The XMTC-62-11-0 GE thermal conductivity binary gas transmitter is engineered with industrial ruggedization, sealed sensing architecture, and temperature compensation, allowing stable operation under fluctuating pressure, humidity, and temperature conditions.

5. How does the XMTC-62-11-0 GE handle signal linearization and output conversion?

The XMTC-62-11-0 GE thermal conductivity binary gas transmitter utilizes microprocessor-based signal conditioning, converting bridge voltage differentials into standardized outputs such as 4–20 mA analog signals or digital communication streams.
