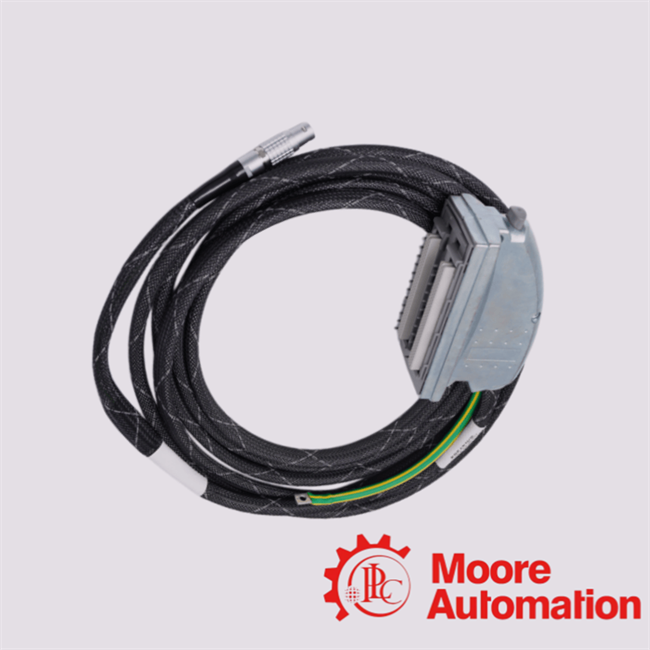

TC-301-02-2M0 ICS Triplex Chassis Power Cable

The TC-301-02-2M0 ICS Triplex Chassis Power Cable is an industrial-grade power interconnection assembly designed for use within ICS Triplex Trusted™ Safety Instrumented System (SIS) architectures. Its primary function is to deliver regulated 24 VDC chassis power from a Power Distribution Unit (PDU) or MCB (commonly T8292) to Trusted controller or expander chassis modules, ensuring stable energy distribution in Triple Modular Redundant (TMR) environments.

This cable plays a critical role in maintaining continuous availability, fault containment, and deterministic power integrity across distributed control and safety systems used in mission-critical industrial sectors such as oil & gas, power generation, and chemical processing.

The TC-301-02-2M0 is engineered as part of a standardized chassis cabling ecosystem, where reliability, flame safety compliance, and mechanical robustness are essential design parameters.

Technical Data

 Q1: What is the intrinsic functional topology of the TC-301-02-2M0 ICS Triplex within Trusted system power architecture?

A1:
The TC-301-02-2M0 ICS Triplex is a dedicated chassis power interconnection cable designed to facilitate regulated 24 VDC power distribution from a Power Distribution Unit (PDU), typically an MCB such as T8292, to a Trusted Controller or Expander Chassis. It ensures deterministic energy transfer within a fault-tolerant TMR (Triple Modular Redundant) architecture, maintaining system continuity in safety-critical applications.

Q2: How does the TC-301-02-2M0 ICS Triplex comply with industrial-grade electromagnetic and fire-retardant standards?

A2:
The TC-301-02-2M0 ICS Triplex cable is engineered with Low Smoke Zero Halogen (LSZH) insulation material, ensuring compliance with IEC 60332-3 Cat A flame retardancy standards. This configuration minimizes toxic gas emission and enhances survivability in high-density industrial control environments where fire propagation mitigation is critical.

Q3: What is the mechanical dimensional footprint and mass distribution profile of the TC-301-02-2M0 ICS Triplex cable assembly?

A3:
The TC-301-02-2M0 ICS Triplex exhibits a standardized industrial packaging envelope with approximate dimensions of 263 × 58 × 28 mm, and a mass of approximately 4.3 kg, ensuring mechanical compatibility with rack-mounted Trusted system chassis while maintaining optimized bend radius and installation ergonomics.

Q4: In which operational domain is the TC-301-02-2M0 ICS Triplex most effectively deployed within distributed control systems?

A4:
The TC-301-02-2M0 ICS Triplex is primarily deployed in mission-critical Safety Instrumented Systems (SIS) and distributed control environments, including oil & gas processing, power generation turbines, and chemical automation plants. It functions as a high-reliability interconnect enabling stable chassis-level power continuity under continuous operation.

Q5: What is the electrical conduction capability and voltage handling specification of the TC-301-02-2M0 ICS Triplex cable?

A5:
The TC-301-02-2M0 ICS Triplex is designed for 24 VDC nominal power transmission within Trusted system architectures. Its conductor cross-sectional design is optimized to meet the current consumption requirements of redundant controller and expander chassis modules, ensuring minimal voltage drop and stable load regulation.
