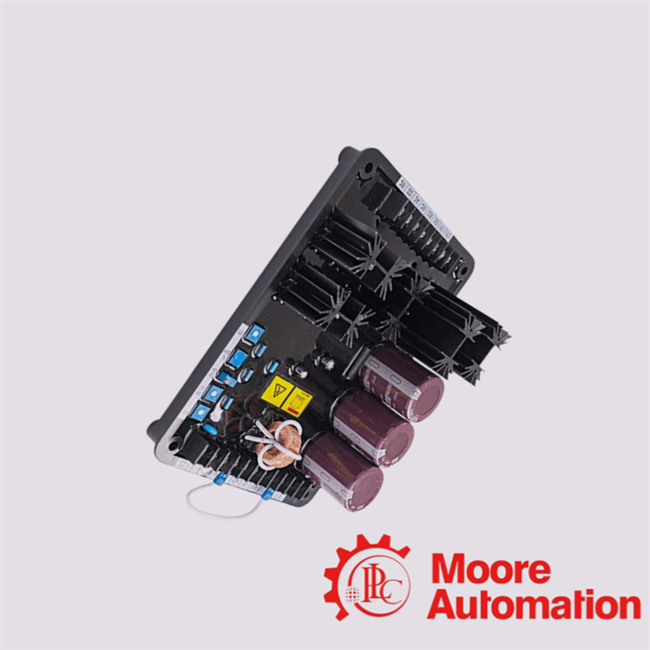

AVC63-12A1 Automatic Voltage Regulator

The AVC63-12A1 Automatic Voltage Regulator (AVR) is a Basler Electric analog excitation control device designed for brushless synchronous generators. It regulates generator terminal voltage by dynamically controlling DC field excitation current, ensuring stable voltage output under varying load, frequency, and power factor conditions.

The AVC63-12A1 Automatic Voltage Regulator is widely used in industrial generators, standby power systems, and prime power applications, where precise voltage regulation and fast transient response are required.

It operates as part of a closed-loop excitation system, sensing AC generator output voltage, comparing it with a reference setpoint, and adjusting excitation to maintain voltage stability.

Technical Data

Q1: What is the fundamental excitation control topology implemented by the AVC63-12A1 Automatic Voltage Regulator within synchronous generator voltage regulation systems?

A: The AVC63-12A1 Automatic Voltage Regulator implements a closed-loop excitation control topology that dynamically adjusts generator field current to maintain terminal voltage stability under varying load and power factor conditions in synchronous generator systems.

Q2: How does the AVC63-12A1 Automatic Voltage Regulator achieve precision voltage stabilization under transient load disturbances?

A: The AVC63-12A1 Automatic Voltage Regulator utilizes high-speed feedback control algorithms that continuously compare sensed terminal voltage with a reference setpoint, applying proportional-integral (PI) regulation to mitigate transient deviations and ensure voltage stability.

Q3: What excitation control methodology is embedded within the AVC63-12A1 Automatic Voltage Regulator for synchronous alternator field regulation?

A: The AVC63-12A1 Automatic Voltage Regulator employs thyristor-based or controlled rectifier excitation control (depending on system configuration) to regulate DC field current supplied to the alternator rotor, thereby controlling the generated electromagnetic flux.

Q4: How does the AVC63-12A1 Automatic Voltage Regulator ensure voltage regulation accuracy across varying load power factors?

A: The AVC63-12A1 Automatic Voltage Regulator compensates for reactive power variations by dynamically adjusting excitation current in response to load power factor shifts, maintaining stable terminal voltage under inductive and capacitive load conditions.

Q5: What sensing and feedback mechanisms are integrated into the AVC63-12A1 Automatic Voltage Regulator for real-time voltage monitoring?

A: The AVC63-12A1 Automatic Voltage Regulator integrates precision voltage sensing inputs derived from potential transformers (PTs), enabling continuous real-time feedback of generator terminal voltage for closed-loop excitation control.
