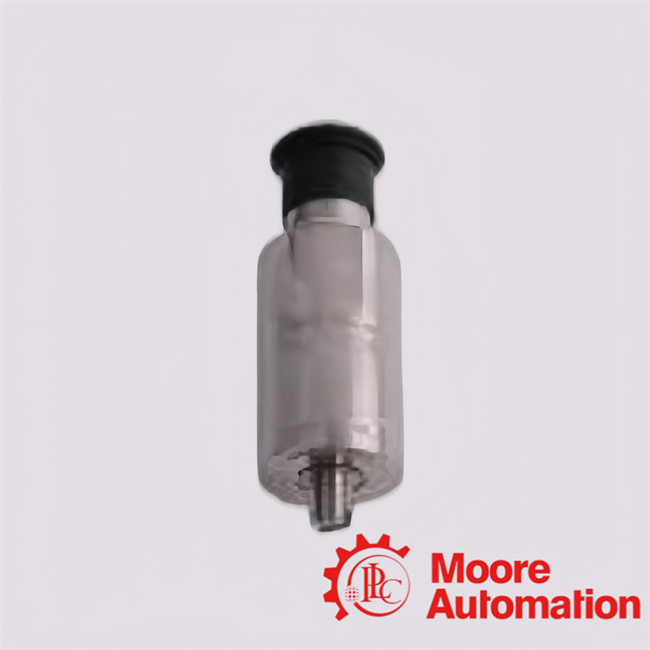

330500-03-02 Bently Nevada Velomitor Piezo-velocity Sensor
Product Overview
The Bently Nevada 330500-03-02 Velomitor Piezo-Velocity Sensor is a high-performance industrial vibration monitoring device designed for casing, bearing housing, and structural vibration measurement in rotating machinery. It belongs to the 330500 Velomitor series, which integrates piezoelectric sensing technology with solid-state electronics to deliver reliable velocity output for critical machinery protection systems.
This sensor is widely used in power generation, oil & gas, and heavy industrial applications where continuous vibration monitoring is essential for equipment reliability and predictive maintenance.
Product Features
The 330500 Velomitor Piezo-Velocity Sensor is a rugged, integrated piezoelectric accelerometer that directly measures absolute vibration velocity. Unlike traditional moving-coil velocity sensors, it features a solid-state design with no moving parts, improving durability and long-term stability.
It is designed for:
- Continuous machinery vibration monitoring
- Bearing housing and casing vibration measurement
- Rotating equipment protection systems
- Predictive maintenance and condition monitoring
Integrated Piezoelectric Technology
The 330500-03-02 sensor uses an advanced piezoelectric crystal with integrated electronics to provide velocity-proportional output, ensuring stable and accurate vibration measurement.
Solid-State Design (No Moving Parts)
Because the 330500 Velomitor sensor has no mechanical moving components, it:
- Eliminates mechanical wear
- Improves long-term reliability
- Reduces maintenance requirements
- Ensures stable signal performance over time
Wide Frequency Response
According to Bently Nevada specifications, the sensor supports a broad frequency range suitable for industrial machinery diagnostics, typically covering low-frequency structural vibration up to high-frequency mechanical faults.
Long-Distance Signal Transmission
The 330500 series supports cable runs up to 305 meters (1,000 ft) while maintaining measurement integrity, making it suitable for large industrial plants.
Technical Specifications
| Product Model: |
330500-03-02 |
| Series: |
Bently Nevada Velomitor 330500 |
| Sensor Type: |
Piezoelectric velocity sensor |
| Measurement Type: |
Absolute casing / bearing housing vibration |
| Output Type: |
Velocity-proportional analog signal |
| Technology: |
Integrated piezoelectric + solid-state electronics |
| Sensitivity: |
~3.94 mV/mm/s (100 mV/in/s) ±5% |
| Operating Principle: |
Piezoelectric charge conversion with internal integration |
| Signal Stability: |
Designed for industrial-grade low-noise operation |
| Electrical Architecture: |
Two-wire self-generating system (system dependent configuration) |
Typical Applications
- Gas turbines
- Steam turbines
- Compressors
- Pumps
- Fans and blowers
- Generators
- Industrial gearboxes
- Heavy rotating machinery systems
Frequently Asked Questions
Q1: What is the main function of the 330500-03-02 Velomitor Piezo-Velocity Sensor?
A1: The 330500-03-02 sensor measures absolute vibration velocity of machinery casing or bearing housing to support industrial condition monitoring and protection systems.
Q2: How does the 330500-03-02 sensor improve reliability compared to traditional velocity sensors?
A2: The 330500 Velomitor sensor uses a solid-state piezoelectric design with no moving parts, eliminating mechanical wear and improving long-term stability.
Q3: What is the operating principle of the 330500-03-02 sensor?
A3: The 330500-03-02 sensor converts mechanical vibration into an electrical signal using a piezoelectric crystal with integrated electronics that output velocity-proportional signals.
Q4: What frequency range does the 330500-03-02 Velomitor sensor support?
A4: The 330500 sensor series typically supports a frequency range from low-frequency structural vibration up to approximately 5 kHz, enabling detection of both slow and high-speed faults.
Q5: Can the 330500-03-02 sensor be used in harsh industrial environments?
A5: Yes, the 330500-03-02 sensor is designed for harsh environments including high vibration, humidity, and industrial temperature conditions.
