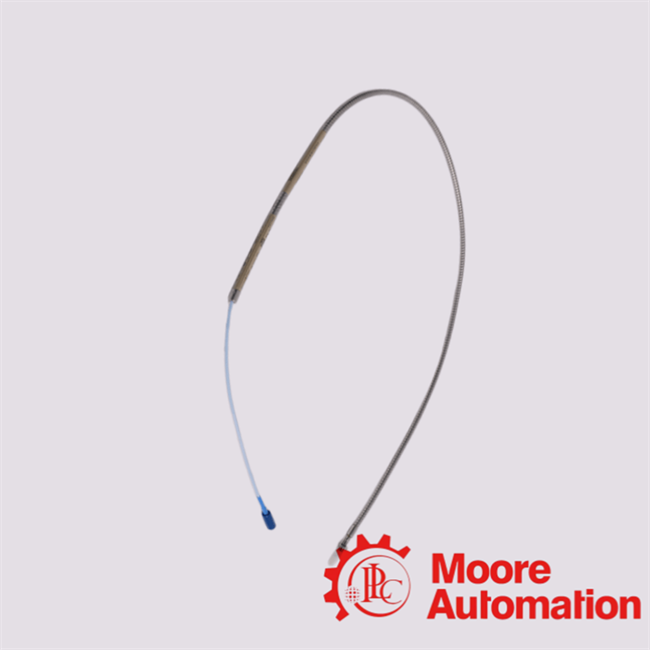

330172-00-20-90-01-05 Bently Nevada 3300 5mm Probe

Name: 330172-00-20-90-01-05 Bently Nevada 3300 5mm Probe
Brand: MOORE AUTOMATION LIMITED
SKU: 330172-00-20-90-01-05
Availability: InStock

Product Details:

Place of Origin:	USA
Brand Name:	Bently Nevada
Certification:	CO.CQ
Model Number:	330172-00-20-90-01-05

Detail Information

Place of Origin:

USA

Brand Name:

Bently Nevada

Certification:

CO.CQ

Model Number:

330172-00-20-90-01-05

Product Name::

3300 5mm Proximity Probe

Part Number::

330172-00-20-90-01-05

Technology Principle::

Eddy-current Electromagnetic Induction

Measurement Output::

Voltage Proportional To Shaft-to-probe Distance

Linear Measurement Range::

Approx. 2 Mm (0.25 To 2.3 Mm Typical Range)

Scale Factor::

~7.87 V/mm (200 MV/mil) Typical

Deviation From Best Fit Line::

±0.038 Mm Typical

Probe Tip Material::

Polyphenylene Sulfide (PPS)

Highlight:

High Light

Highlight:

High-Precision Eddy-Current Displacement Sensing

Optimized for Fluid-Film Bearing Machinery

Modular 3300 Transducer System Compatibility

Trading Information

Minimum Order Quantity:

Price:

inquiry

Packaging Details:

new and original with factory sealed

Delivery Time:

2-3 work days

Payment Terms:

T/T

Supply Ability:

10 pieces a day

Product Description

330172-00-20-90-01-05 Bently Nevada 3300 5mm Probe

Bently Nevada 330172-00-20-90-01-05 3300 5mm Probe | Proximity Transducer Sensor

Product Overview

The 330172-00-20-90-01-05 Bently Nevada 3300 5mm Probe is part of the 3300 5 mm Proximity Transducer System, designed for high-precision eddy-current displacement and vibration measurement in critical rotating machinery.

When combined with a compatible Proximitor sensor and extension cable, the probe delivers a voltage output proportional to the distance between the probe tip and a conductive target surface, enabling both static position and dynamic vibration monitoring.

This probe is widely used in industrial condition monitoring systems for fluid-film bearing machinery.

Key Features

Part Number: 330172-00-20-90-01-05
Series: 3300 5 mm Proximity Transducer System
Measurement Type: Non-contact eddy-current displacement sensing
Supports both vibration and shaft position monitoring
High stability signal output over wide temperature range
Interchangeable system architecture (probe + cable + sensor)
Designed for turbomachinery and industrial rotating equipment

Typical Applications

Steam turbines
Gas turbines
Centrifugal compressors
Pumps and motors
Fluid-film bearing machines
Industrial rotating machinery monitoring systems
Predictive maintenance platforms

Frequently Asked Questions

Q1: What is the precision displacement measurement architecture embedded in the 330172-00-20-90-01-05 Bently Nevada 3300 5 mm Probe system?

A: The 330172-00-20-90-01-05 Bently Nevada 3300 5 mm Probe operates as part of a 3-component eddy-current proximity transducer system, enabling non-contact measurement of shaft displacement, vibration, and position when paired with a 3300 XL extension cable and Proximitor sensor.

Q2: How does the 330172-00-20-90-01-05 Bently Nevada 3300 5 mm Probe implement eddy-current linearization for high-fidelity shaft monitoring?

A: The 330172-00-20-90-01-05 Bently Nevada 3300 5 mm Probe uses an eddy-current electromagnetic field interaction principle, where variations in probe-to-target gap generate a proportional voltage signal, enabling accurate monitoring of both static and dynamic shaft motion.

Q3: Why is the 330172-00-20-90-01-05 Bently Nevada 3300 5 mm Probe optimized for fluid-film bearing machinery diagnostics?

A: The 330172-00-20-90-01-05 Bently Nevada 3300 5 mm Probe is specifically engineered for fluid-film bearing applications, where it measures radial vibration and shaft position with a recommended gap of 1.27 mm (50 mils) for optimal linear response.

Q4: What is the metrological significance of the 2 mm linear measurement range in the 330172-00-20-90-01-05 Bently Nevada 3300 5 mm Probe?

A: The 330172-00-20-90-01-05 Bently Nevada 3300 5 mm Probe operates within a 2 mm (80 mils) linear range, typically from 0.25 mm to 2.3 mm, ensuring high-accuracy displacement conversion with minimal deviation from a best-fit linear response.

Q5: How does the 330172-00-20-90-01-05 Bently Nevada 3300 5 mm Probe ensure interchangeability without recalibration?

A: The 330172-00-20-90-01-05 Bently Nevada 3300 5 mm Probe is part of a fully interchangeable system architecture, where probes, extension cables, and Proximitor sensors can be replaced independently without requiring bench calibration or re-matching.
