3701/55 323174-01 Bently Nevada ADAPT (ESD) Emergency Shutdown Device
Bently Nevada ADAPT Safety System
Product Overview

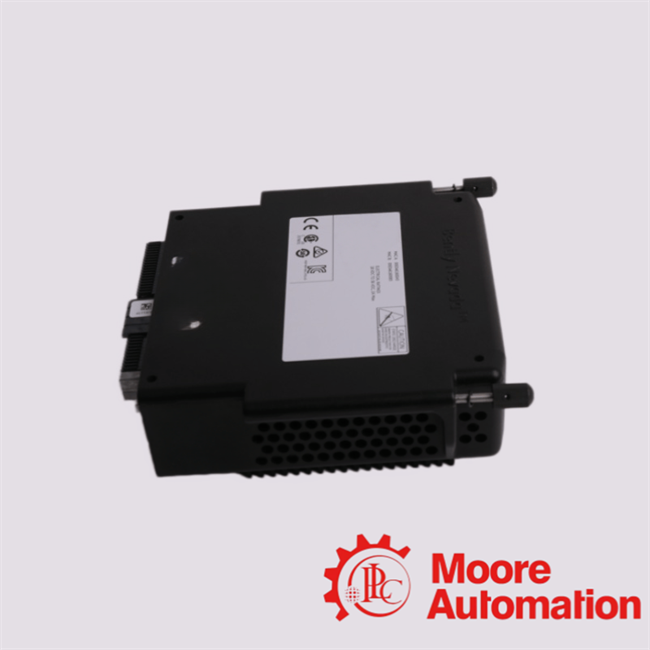

The 3701/55 323174-01 Bently Nevada ADAPT ESD Emergency Shutdown Device is a high-integrity Safety PLC-based Emergency Shutdown System (ESD) designed for critical protection of rotating machinery. It integrates graphical logic programming, overspeed detection, and triple modular redundancy (TMR) architecture, making it suitable for safety-critical applications in turbines, compressors, expanders, and industrial process equipment.
Key Features
- Part Number: 3701/55 323174-01
- System Type: ADAPT ESD Safety PLC
- Safety Architecture: Triple Modular Redundancy (TMR)
- Function: Emergency shutdown & overspeed protection
- Programming Interface: Graphical logic configuration software
- Application: Rotating machinery protection system
Safety Architecture (TMR Design)
The 3701/55 323174-01 Bently Nevada ADAPT ESD system uses Triple Modular Redundancy (TMR):
- 3 independent CPU modules
- Each CPU processes 2 speed input channels
- Total system capacity: 6 speed channels
- Continuous cross-monitoring for fault detection
This architecture ensures fault-tolerant and fail-safe operation in safety-critical environments.
Input System Architecture
Discrete Inputs
- Up to 32 DI/PV channels
- 12 channels configurable as:
- Discrete inputs OR
- 4-20 mA analog inputs
- Dry contact support with polarity-independent terminals
- Internal wetting voltage: 10-15 VDC
- Fault tolerance: ± 40 V input protection
Analog Inputs
- Signal range: 4-20 mA ±1%
- Common mode range: ± 32 V
- Differential range: 0-25 mA
- Designed for industrial process instrumentation integration
- Fault protection: ± 40 V tolerance
Output System Architecture
The 3701/55 ADAPT ESD Emergency Shutdown Device uses TMR relay output modules:
- Each module includes 5 relays
- 4 relays used for logic annunciation
- 1 relay indicates OK / NOT OK system status
- Supports configurable voting logic:
- 1oo1 (one-out-of-one)
- 2oo3 (two-out-of-three TMR voting)
This ensures deterministic and fail-safe shutdown execution.
Typical Applications
- Gas turbines
- Steam turbines
- Hydro turbines
- Compressors
- Expanders
- Oil & gas process systems
- Petrochemical plants
- Power generation safety systems
Frequently Asked Questions
Q1: What is the functional safety architecture implemented in the 3701/55 323174-01 Bently Nevada ADAPT (ESD) Emergency Shutdown Device for mission-critical protection systems?
A: The 3701/55 323174-01 Bently Nevada ADAPT (ESD) Emergency Shutdown Device utilizes a Triple Modular Redundancy (TMR) safety architecture, where three independent CPU modules continuously process and cross-validate safety logic to ensure fail-safe operation.
Q2: How does the 3701/55 323174-01 Bently Nevada ADAPT (ESD) Emergency Shutdown Device achieve overspeed detection redundancy in rotating machinery protection applications?
A: The 3701/55 323174-01 Bently Nevada ADAPT (ESD) Emergency Shutdown Device processes six total speed input channels (two per CPU module), enabling redundant overspeed detection for turbines, compressors, and expanders.
Q3: What is the role of triple modular redundancy (TMR) in the 3701/55 323174-01 Bently Nevada ADAPT (ESD) Emergency Shutdown Device input processing system?
A: In the 3701/55 323174-01 Bently Nevada ADAPT (ESD) Emergency Shutdown Device, TMR ensures that all input signals are independently processed by three CPUs, allowing automatic fault detection and isolation in case of channel deviation.
Q4: How does the 3701/55 323174-01 Bently Nevada ADAPT (ESD) Emergency Shutdown Device manage mixed signal inputs such as discrete and analog signals?
A: The 3701/55 323174-01 Bently Nevada ADAPT (ESD) Emergency Shutdown Device supports up to 32 combined DI/PV channels, with 12 configurable as either discrete inputs or 4-20 mA analog inputs, enabling flexible integration with industrial instrumentation.
Q5: What is the significance of 4-20 mA signal processing in the 3701/55 323174-01 Bently Nevada ADAPT (ESD) Emergency Shutdown Device architecture?
A: The 3701/55 323174-01 Bently Nevada ADAPT (ESD) Emergency Shutdown Device supports 4-20 mA analog inputs with ±1% accuracy, allowing precise process variable monitoring in safety-critical applications.
