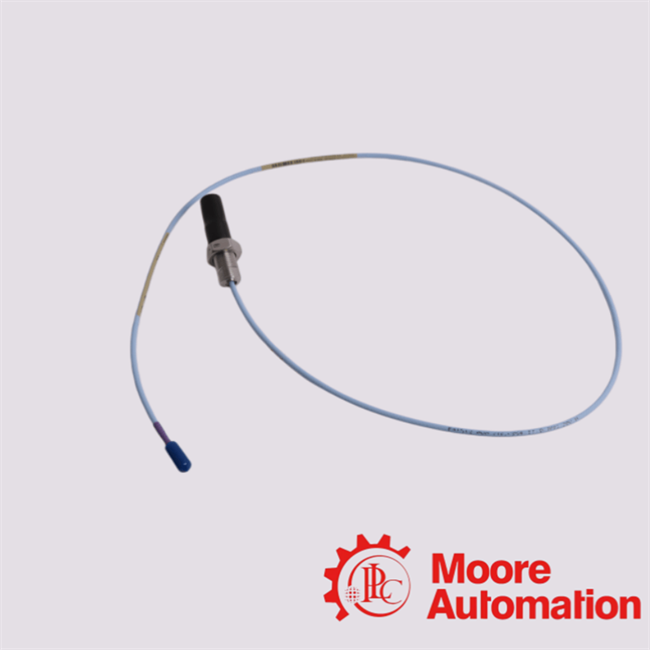

330702-00-25-10-02-00 Bently Nevada 3300 XL 11 mm Probe

The 330702-00-25-10-02-00 Bently Nevada 3300 XL 11 mm Proximity Probe is a high-performance eddy current sensor designed for accurate measurement of shaft vibration and position in large rotating machinery. As part of the Bently Nevada 3300 XL series, this 11 mm probe is specifically engineered for applications requiring a larger measurement range and enhanced sensitivity for heavy-duty industrial equipment.

It is widely used in machinery condition monitoring and protection systems across power generation, oil & gas, petrochemical, and heavy industrial sectors.

The probe operates using eddy current technology, generating a high-frequency electromagnetic field at the probe tip. When a conductive surface such as a rotating shaft enters the field, eddy currents are induced, causing measurable changes in impedance. These changes are converted into precise displacement signals.

This allows accurate, real-time, non-contact monitoring of shaft movement, improving reliability and reducing mechanical wear.

• Steam turbines
• Gas turbines
• Large compressors
• Pumps and motors
• Generators
• Heavy rotating machinery systems

It is particularly suitable for large-scale industrial equipment where higher measurement range and robust signal stability are required.

The 330702 probe is part of a complete proximity measurement system:

1. Proximity Probe (this product)
2. Extension Cable
3. Proximitor Sensor

This modular system ensures flexible installation, easy replacement, and consistent calibration across monitoring setups.

FAQ – Bently Nevada 330702-00-25-10-02-00

1. What is 330702-00-25-10-02-00 used for?

The 330702-00-25-10-02-00 is a Bently Nevada 3300 XL 11mm proximity probe used for shaft vibration and displacement monitoring in rotating machinery.

You’ll usually see it installed on:

• Steam turbines
• Gas turbines
• Large compressors
• Industrial pumps
• Heavy rotating equipment systems

It is part of a protection chain, not just a measurement tool. If shaft movement goes abnormal, it feeds data into the monitoring system for alarm or shutdown logic.

2. Is this an eddy current proximity probe?

Yes.

It uses eddy current sensing technology, meaning it measures distance between probe tip and metal shaft without physical contact.

That’s the core reason it is still widely used in harsh industrial environments:

• No mechanical wear
• Stable long-term signal behavior
• Works under high speed rotation
• Resistant to many industrial conditions

3. What does the full model number actually mean?

This is where people often get misled.

In 330702-00-25-10-02-00, each section matters:

• 330702 → probe family (3300 XL 11mm series)
• 00 → unthreaded length option
• 25 → case length configuration
• 10 → total probe/cable length (~1.0 m class)
• 02 → connector type (ClickLoc style)
• 00 → agency approval / variant code

Here’s the problem in real purchasing:

Two probes can look identical physically but fail electrically because one suffix is different.

That’s a classic mistake in plant replacement work.

4. Can I replace it with another 3300 XL probe?

Sometimes yes, but only if configuration matches exactly.

In real maintenance cases, mismatch leads to:

• unstable vibration readings
• offset drift in displacement trend
• false alarms in monitoring rack
• calibration mismatch with Proximitor module

A common scenario:

Plant replaces probe → signal still unstable → they replace monitor card → issue still exists → finally cable/probe mismatch is found.

This happens more often than most engineers admit.

5. What are the most common failure points?

The probe element itself is rarely the real issue.

Most failures come from practical field conditions:

• Cable fatigue
• Continuous vibration causes internal stress near the connector or bending points.
• Connector issues

Small looseness or oxidation in ClickLoc connection can create intermittent signal loss.

Installation gap problems

If the probe is not installed with stable gap reference, readings drift over time.

Environmental contamination

Oil mist, moisture, and dust can gradually affect signal stability.
