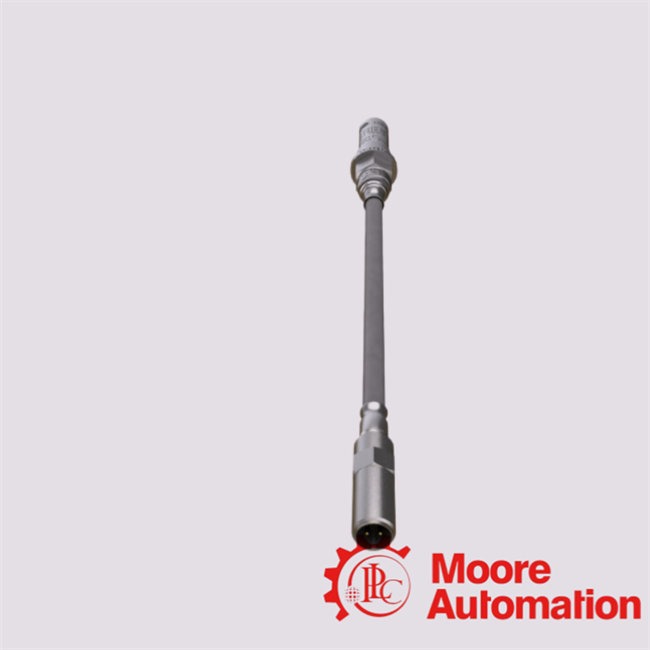

CP235 143-235-000-012 Vibro-meter High-temperature Piezoelectric Pressure Transducer

Name: CP235 143-235-000-012 Vibro-meter High-temperature Piezoelectric Pressure Transducer
Brand: MOORE AUTOMATION LIMITED
SKU: CP235 143-235-000-012
Availability: InStock

Product Details:

Place of Origin:	Switzerland
Brand Name:	Vibro-meter
Certification:	CO.CQ
Model Number:	CP235 143-235-000-012

Detail Information

Place of Origin:

Switzerland

Brand Name:

Vibro-meter

Certification:

CO.CQ

Model Number:

CP235 143-235-000-012

Typical Sensitivity::

750 PC/bar

Equivalent Sensitivity::

51.7 PC/psi

Frequency Range::

2 Hz – 10,000 Hz

Operating Range::

0.00005 To 5 Bar (nominal Dynamic Range)

Maximum Pressure Spike Resistance::

Up To 100 Bar (1450 Psi)

Non-linearity::

≤ ±1% Of Full Dynamic Range

Highlight:

High Light

Highlight:

Designed for Combustion Instability & Turbine Monitoring

High-Frequency Dynamic Pressure Response (Up to 10 kHz)

Ultra-High Sensitivity for Precision Combustion Diagnostics

Trading Information

Minimum Order Quantity:

Price:

inquiries

Packaging Details:

new and original with factory sealed

Delivery Time:

2-3 work days

Payment Terms:

T/T

Supply Ability:

10 pieces a day

Product Description

CP235 143-235-000-012 Vibro-meter High-temperature Piezoelectric Pressure Transducer

Product Overview

The CP235 Pressure Transducer is a high-performance dynamic pressure measurement device developed by Vibro-Meter, engineered for extreme thermal and mechanical environments.

Model: CP235 143-235-000-012

This sensor is specifically designed for high-temperature dynamic pressure monitoring, making it ideal for gas turbines, combustion chambers, and advanced industrial energy systems where conventional sensors fail under thermal stress.

Applications

Gas turbine combustion monitoring
Jet engine test benches
Industrial burner systems
High-pressure combustion chambers
Power generation turbines
Aerospace propulsion testing
Research and development in thermodynamic systems

Technical Parameters

Model: CP235
Order Code: 143-235-000-012
Technology: Piezoelectric pressure sensing
Measurement Type: Dynamic pressure
Output Signal: Charge output (pC)
Temperature Capability: High-temperature industrial environment
Frequency Response: Wide-band dynamic pressure detection
Application: Combustion & turbine monitoring systems
Compatibility: Vibro-Meter charge amplifiers and signal conditioners

Frequently Asked Questions

Q1: What is the fundamental transduction mechanism inside CP235 143-235-000-012 Vibro-Meter High-temperature Piezoelectric Pressure Transducer for high-energy combustion environments?

A1: The CP235 143-235-000-012 Vibro-Meter High-temperature Piezoelectric Pressure Transducer utilizes a piezoelectric crystal structure that generates an electrical charge proportional to dynamic pressure variations, enabling high-fidelity measurement of transient combustion phenomena.

Q2: How does CP235 143-235-000-012 Vibro-Meter High-temperature Piezoelectric Pressure Transducer maintain measurement stability under extreme thermal gradients?

A2: The CP235 143-235-000-012 Vibro-Meter High-temperature Piezoelectric Pressure Transducer is engineered with thermally stable piezoelectric materials and mechanical isolation design, ensuring minimal drift and signal degradation under high-temperature cyclic stress conditions.

Q3: What makes CP235 143-235-000-012 Vibro-Meter High-temperature Piezoelectric Pressure Transducer suitable for combustion instability diagnostics?

A3: The CP235 143-235-000-012 Vibro-Meter High-temperature Piezoelectric Pressure Transducer is optimized for high-frequency response, allowing it to capture rapid pressure oscillations associated with combustion instability, flame pulsation, and detonation events.

Q4: In what way does CP235 143-235-000-012 Vibro-Meter High-temperature Piezoelectric Pressure Transducer interface with charge amplification systems?

A4: The CP235 143-235-000-012 Vibro-Meter High-temperature Piezoelectric Pressure Transducer outputs a raw charge signal (pC), requiring integration with charge amplifiers or signal conditioners such as Vibro-Meter IPC-series modules for conversion into usable industrial signals.

Q5: Why is CP235 143-235-000-012 Vibro-Meter High-temperature Piezoelectric Pressure Transducer preferred for turbine combustion chamber monitoring?

A5: The CP235 143-235-000-012 Vibro-Meter High-temperature Piezoelectric Pressure Transducer is preferred due to its ability to withstand extreme thermal loads while accurately capturing high-frequency pressure fluctuations within turbine combustion zones.
