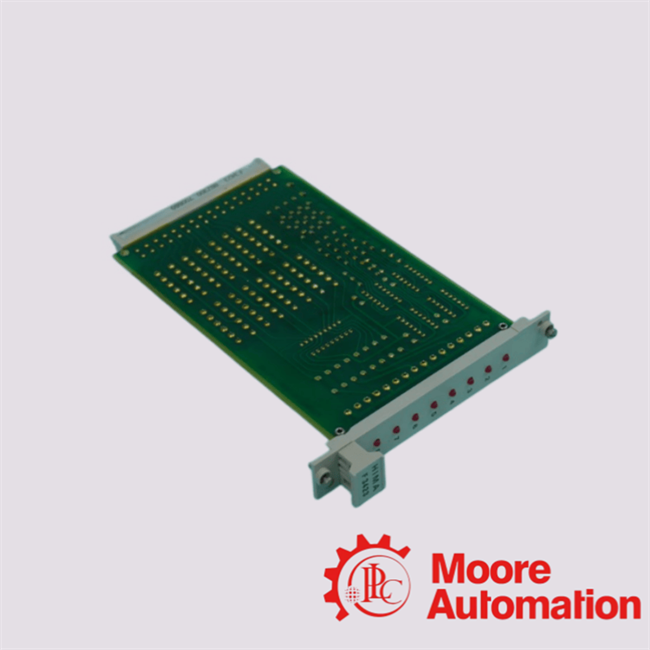

F3422 HIMA 8-Channel Relay Module
The F3422 HIMA 8-channel relay module is a high-integrity safety-related output module designed for use in safety instrumented systems (SIS). Engineered by HIMA, a global leader in safety automation technology, this module provides reliable switching control for critical industrial applications where fail-safe operation is essential. It is widely used in process automation environments requiring SIL-rated safety performance, ensuring secure control of actuators, alarms, shutdown systems, and interlocking circuits.
Key Features
- 8 independent relay output channels
- Designed for safety-related control applications (SIS environments)
- Fail-safe architecture with diagnostic capability
- High-reliability industrial-grade relay switching
- Electrical isolation between channels for enhanced system protection
- Compatible with HIMA safety control systems
- Supports redundant safety system configurations
- Long operational lifetime under continuous industrial use
Functional Description
The F3422 HIMA 8-channel relay module functions as a digital output interface within safety automation systems. Each channel operates as an independent relay switch, enabling control of external devices such as solenoid valves, alarms, motors, and shutdown mechanisms. The module receives logic signals from a safety controller and translates them into physically isolated relay outputs, ensuring deterministic and fail-safe actuation in critical process environments.
Typical Applications
- Oil & gas process safety systems
- Chemical and petrochemical plants
- Power generation safety shutdown systems
- Burner management systems (BMS)
- Emergency shutdown (ESD) systems
- Industrial automation safety interlocks
- Offshore platform safety control systems
Technical Characteristics
- Module Type: Safety-related relay output module
- Channels: 8 independent relay outputs
- Output Function: Switching control for field devices
- Safety Integrity: Designed for SIL-rated applications (system-dependent)
- Isolation: Channel-to-channel electrical isolation
- Integration: HIMA safety controller compatible architecture
- Operation Mode: Deterministic safety output switching
- Maintenance: Online diagnostics support via safety system
Engineering Advantages
The F3422 HIMA 8-channel relay module delivers high availability in mission-critical systems, deterministic switching behavior for safety functions, reduced risk of unsafe states through fail-safe design, strong electromagnetic compatibility (EMC) performance, and simplified integration into modular safety architectures.
System Integration
The F3422 HIMA 8-channel relay module is designed to integrate seamlessly within HIMA safety systems, enabling centralized safety logic control, distributed output actuation, redundant system configuration support, easy module replacement and maintenance, and scalable safety system expansion.
Frequently Asked Questions
Q1: What advanced fail-safe switching topology is implemented?
The F3422 HIMA 8-channel relay module employs a fail-safe relay switching architecture that ensures deterministic output de-energization in fault conditions, enabling secure actuation control in safety instrumented systems.
Q2: How does the module maintain channel independence?
The F3422 HIMA 8-channel relay module provides galvanically isolated relay channels, ensuring that each output operates independently without cross-interference, even under high-load switching scenarios.
Q3: How does it support SIL-rated safety system compliance?
The F3422 HIMA 8-channel relay module is designed for integration into SIL-capable safety architectures, enabling compliance through deterministic switching behavior, diagnostics support, and fault-tolerant system design.
Q4: Why is it essential in emergency shutdown (ESD) systems?
The F3422 HIMA 8-channel relay module provides reliable actuation of shutdown signals across multiple channels, ensuring rapid and safe isolation of process equipment during emergency conditions.
Q5: How does it enhance system-level diagnostic transparency?
The F3422 HIMA 8-channel relay module supports system-level diagnostics through continuous monitoring of output states, enabling early detection of relay degradation or circuit anomalies.
