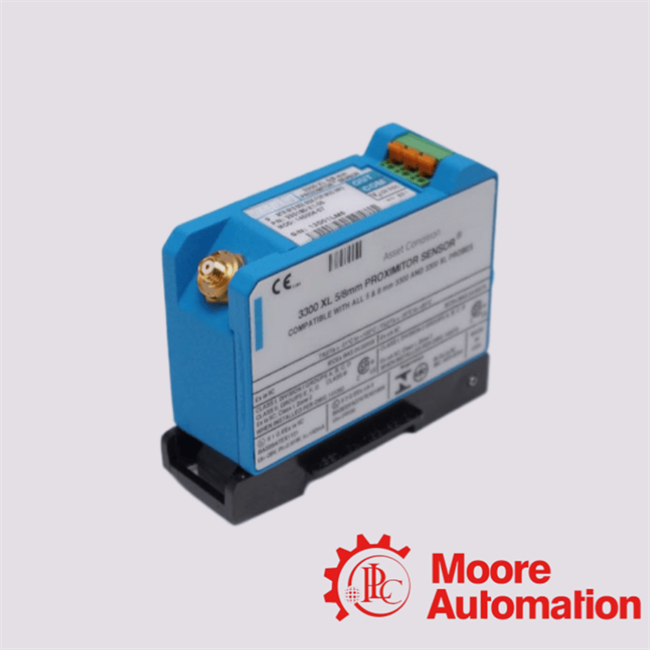

330180-X1-05 MOD：145004-15 Bently Nevada 3300 XL 8 mm Proximitor Sensor for rotating machinery
330180-X1-05 MOD：145004-15 Bently Nevada 3300 XL 8 mm Proximitor Sensor for rotating machinery
  • 330180-X1-05 MOD：145004-15 Bently Nevada 3300 XL 8 mm Proximitor Sensor for rotating machinery
  • 330180-X1-05 MOD：145004-15 Bently Nevada 3300 XL 8 mm Proximitor Sensor for rotating machinery
  • 330180-X1-05 MOD：145004-15 Bently Nevada 3300 XL 8 mm Proximitor Sensor for rotating machinery

330180-X1-05 MOD：145004-15 Bently Nevada 3300 XL 8 mm Proximitor Sensor for rotating machinery

Product Details:
Place of Origin: USA
Brand Name: Bently Nevada
Certification: CO.CQ
Model Number: 330180-X1-05 MOD：145004-15
Detail Information
Place of Origin:
USA
Brand Name:
Bently Nevada
Certification:
CO.CQ
Model Number:
330180-X1-05 MOD：145004-15
Product Series:
Bently Nevada 3300 XL Proximitor Platform
Agency Approval Option (05):
Multiple Approvals (CSA, ATEX, IECEx For Hazardous Environments)
Transducer Compatibility:
Interfaces With Non-contacting 3300-series 5mm Or 3300 XL 8mm Probes
Input Power Rails:
Requires Continuous Stable -17.5 Vdc To -26 Vdc Supply
Terminal Strips:
Integrated SpringLoc Connectors (remains Tight Under Heavy Vibration)
Highlight:

High Light

Highlight:

Custom Alloy Optimized: Factory re-tuned for non-standard target metallurgy.

,

3300 XL Core Reliability: Industry-standard eddy current signal demodulation

,

SpringLoc Termination: Tool-free anti-loosening field terminal wire strips

Trading Information
Minimum Order Quantity:
1
Price:
inquiries
Packaging Details:
new and original with factory sealed
Delivery Time:
2-3 work days
Payment Terms:
T/T
Supply Ability:
requires
Product Description
330180-X1-05 MOD：145004-15 Bently Nevada 3300 XL 8 mm Proximitor Sensor for rotating machinery
Product Overview

330180-X1-05 MOD:145004-15 Bently Nevada 3300 XL 8 mm Proximitor Sensor for rotating machinery

Engineered with the specialized 145004-15 non-standard target material modification, this 330180-X1-05 Proximitor Sensor delivers precise analog telemetry for critical vibration and thrust tracking on specialty alloy rotors. It completely eliminates the severe scale-factor errors and voltage drift that occur when standard AISI 4140 calibrated sensors are deployed on custom shaft compositions. This makes it the definitive signal-conditioning solution for high-reliability machinery protection systems on unique metallurgy gas turbines, high-speed centrifugal compressors, and heavy process pumps.

Engineering Note
"When retrofitting a control loop with the `MOD: 145004-15` variation, do not replace it with a standard, off-the-shelf 330180 Proximitor [23d2a1de24360b13]. The 145004 series reconfigures the internal demodulator matrix explicitly for specialized target metals. Swapping this out for a standard 4140-steel calibrated sensor will lead to severe signal scaling distortion, causing your machinery protection system to miscalculate actual shaft displacement and risking un-triggered catastrophic failures during an over-vibration event."
Real-World Application Case Study
  • Project: Specialty Stainless Steel Turbine Rotor Monitoring Upgrade
  • Location: Indonesia (2025 Deployment)
  • Application: This exact model was successfully deployed for a manufacturing plant in Indonesia in 2025, operating flawlessly under tropical humid conditions. Serving as the primary signal processor for continuous fluid-film bearing monitors, these sensors translate raw displacement telemetry straight to a centralized 3500 series machinery protection rack to safeguard multi-million dollar rotating assets from cataclysmic mechanical failure.
Custom Product FAQ
Q: What specific material calibration is indicated by the "MOD: 145004-15" suffix?
A: The `145004` sequence is Bently Nevada's dedicated category for non-standard target material calibrations. The `-15` designation specifies a precise, proprietary alloy tuning profile. It ensures linear scale accuracy on exotic shafts (such as specialized grades of stainless steel or high-nickel alloys) where standard magnetic permeability constants do not apply.
Q: Does this modification affect the interchangeability of my standard 3300 XL probes?
A: Yes. Custom material modifications can exhibit higher probe-to-probe interchange sensitivity and shift the baseline E-zero voltage. When replacing components in a 145004-15 loop, always verify the final gap-to-voltage curve during field commissioning.
Q: Can this sensor be deployed directly in Zone 0 or Zone 1 hazardous environments?
A: Yes. Suffix `05` provides multiple global agency certifications. When wired through matching intrinsically safe galvanic barriers, the sensor is fully approved for Ex ia IIC explosion-proof layouts under ATEX, IECEx, and CSA frameworks.
