Exact Product Identity
The identity and function below follow ABB Hardware Description 3BHS102402 E83 for the UNITROL F excitation system.
| Official field | Verified value |
|---|---|
| Manufacturer | ABB |

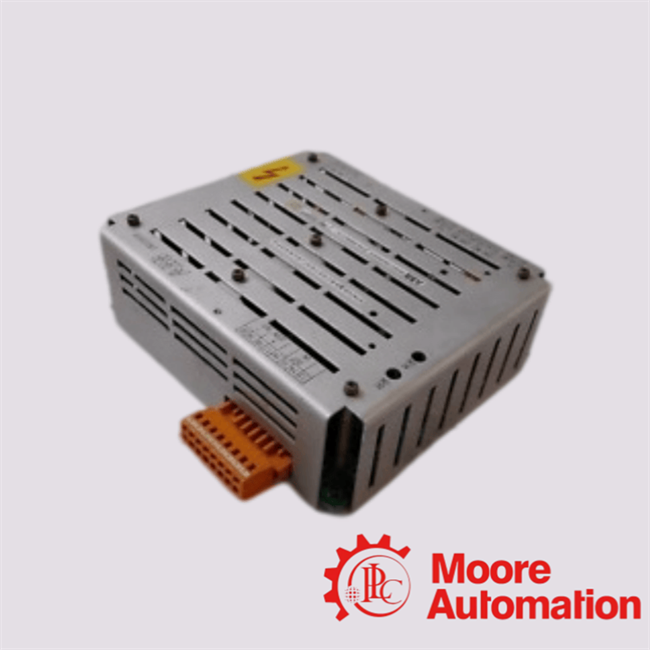

| Module designation | UNS0868A-P, Variant V2 |
| Ordering number | HIEE305120R2 |
| Product type | External power supply unit |
| System context | UNITROL F excitation system |
| Primary function | Provides the voltage supply to the POW-1 module integrated in the UNITROL F unit. |
Verified Electrical Data
| Parameter | ABB published value |
|---|---|
| V2 AC input range | 127 to 213 VAC |
| V2 DC input range | 82 to 312 VDC |
| AC frequency range | 50 to 600 Hz |
| Main output | 240 VDC, ±10%, 40 W |
| Contact interrogation output | +24 VDC, ±10%, 16 W |
| Dimensions | 178 × 155 × 58 mm |
| Mass | 750 g |
| Degree of protection | IP20 when ABB assembly requirements are observed |
| Installation altitude | Maximum 2,000 m above sea level |
| Connection terminals | 2.5 mm² WAGO type 231 spring-cage terminals |
Functional Design
AC and DC supply paths
ABB describes AC and DC inputs that are decoupled before the step-up converter, supporting a redundant supply concept.
Input status supervision
The AC and DC input voltages are monitored. AC and DC presence is shown by the AC ON and DC ON LEDs.
240 VDC continuity option
During brief DC supply interruptions, the 240 VDC output can be supported by an external capacitor connected at the specified output terminals.
24 VDC contact supply
The contact interrogation voltage is galvanically isolated, current-limited and short-circuit-proof according to the ABB description.
Lifecycle-Aware Verification
Record the complete order number, module designation and V2 marking from the nameplate.
Confirm AC/DC source ranges, output circuits, terminal assignments and cabinet protection.
Follow ABB hardware documentation and use qualified personnel for de-energized inspection and installation.
