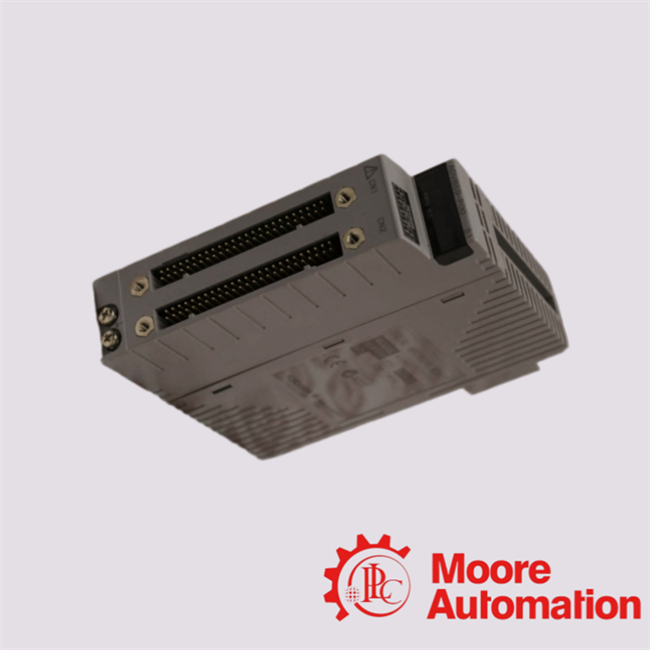

ADV869-P00 S1 Yokogawa 32-Input 32-Output ST5 Digital I/O Module

Name: ADV869-P00 S1 Yokogawa 32-Input 32-Output ST5 Digital I/O Module
Brand: MOORE AUTOMATION LIMITED
SKU: ADV869-P00 S1
Price: Negotiable USD
Availability: InStock

Product Details:

Place of Origin:	Japan
Brand Name:	Yokogawa
Certification:	CO.CQ
Model Number:	ADV869-P00 S1

Detail Information

Place of Origin:

Japan

Brand Name:

Yokogawa

Certification:

CO.CQ

Model Number:

ADV869-P00 S1

Product Description:

Yokogawa Digital I/O Module For Compatible ST5 With 32 Digital Inputs, 32 Transistor-contact Outputs And Style S1 Identification.

Model / Style:

ADV869-P00 · Style S1 · Basic Type

Channel Configuration:

32-channel Input · 32-channel Output · Common Every 16 Channels

Input Specifications:

Contact OFF ≥100 KΩ / ON ≤200 Ω · Voltage OFF 4.5–25 V DC / ON ±1 V DC

Output Specifications:

Transistor Contact · 30 V DC, 100 MA · Response Time ≤16 Ms

Power / Connection:

800 MA Maximum At 5 V DC · KS9 Dedicated Cable · Approx. 0.30 Kg

Highlight:

High Light

Highlight:

ADV869-P00 S1 Yokogawa ST5 Digital I/O Module

32-Input 32-Output Transistor Contact Module

KS9 Cable 8 ms Input 16 ms Output 5 VDC 800 mA

Trading Information

Minimum Order Quantity:

Price:

inquires

Packaging Details:

new and original with factory sealed

Delivery Time:

2-3 work days

Payment Terms:

T/T

Supply Ability:

requires

Product Description

YOKOGAWA OFFICIAL-SOURCE PROFILE

ADV869-P00 S1 Digital I/O Module

Yokogawa field I/O configuration combining 32 digital inputs and 32 transistor-contact outputs for compatible ST5 applications. All technical values below follow Yokogawa General Specifications GS 33J60F70-01EN.

32 DIContact or voltage status inputs

32 DOTransistor-contact outputs

ST5Compatible card designation

KS9Dedicated cable connection

Exact configuration at a glance

MODEL / STYLEADV869-P00 · Style S1

PRODUCT TYPEDigital I/O module for compatible ST5

I/O CHANNELS32-channel input · 32-channel output

ISOLATIONCommon every 16 channels; common minus side

INPUT RESPONSE8 ms for status input

OUTPUT RESPONSE16 ms or less

POWER DRAW800 mA maximum at 5 V DC

WEIGHTApproximately 0.30 kg

Official signal specifications

Values are presented without extrapolation. Confirm the complete model, suffix and Style S1 label before procurement.

Digital input side

Contact input: OFF 100 kΩ or more; ON 200 Ω or less.

Minimum short-circuit current: 1.25 mA.

Voltage input: OFF 4.5 to 25 V DC; ON ±1 V DC, 200 Ω or less.

Input contact rating: 5 V DC, 20 mA or more.

Digital output side

Output signal: Transistor contact.

Contact rating: 30 V DC, 100 mA for inductive or resistive load.

Pulse width: 8 ms to 7200 s.

Resolution: 8 ms, plus a maximum 1 ms ON/OFF delay.

Model-code and order verification

01 · IDENTIFYMatch ADV869-P00 and the Style S1 nameplate.

02 · VERIFYConfirm the ST5 application, KS9 cable and 16-channel common grouping.

03 · ORDERProvide quantity, destination, required date and installed-unit photos.

Suffix basis: “-P” denotes pulse-width/time-proportional output functions; the first “0” is fixed; the second “0” is the basic type. Yokogawa lists suffix “1” as the ISA Standard G3 option, so P00 and P01 must not be treated as interchangeable.
