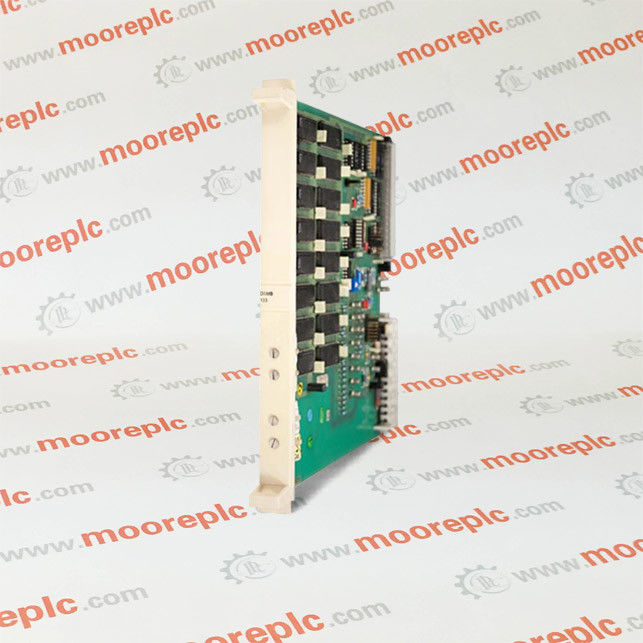

ABB Module PU514 3BSE013062R1 ABB PU514 3BSE013062-R1 board For new products

ABB Module PU514 3BSE013062R1 ABB PU514 3BSE013062-R1 board For new products

Product Description:

Temperatures that exceed the measuring range cause the overflow numerical value of +32767. If the measured value is below the range, the underflow numerical value of -32767 is set. In case of a detected open-circuit the numerical value of 32767 is set. If the sensor is short-circuited, the numerical value of -32767 is set. If the open-circuit or short-circuit monitoring is configured,
the detected error is displayed by the red LED Ovl as long as it is present. In the PLC system an error message is stored (FK4, error number 9). In order to avoid error messages with unused analog inputs,
it is useful, not to configure this channels for Pt100.In order to avoid measurement errors, it is absolutely necessary, to lead the cores to the Pt100 sensors in the same cable. The cores must have the same cross section.

Related Product Recommendation:

Product's Character:

Differential inputs are very useful, if analog sensors are used which are remotely non-isolated (e.g. the minus terminal is remotely earthed). Since the earthing potential is not exactly the same as
AGND1, it has to be measured bipolar in order to compensate measuring errors. Additionally, in case of singlepole configuration, AGND1 would be connected directly to the remote earth potential. This would cause inadmissable (and possibly dangerous) earthing loops. In all configurations using differential inputs two adjacent analog inputs belong together (e.g. EW 6,00 and EW 6,01). For configuration, both inputs must be configured for the desired operating mode, see configuration table Fig. The measured value is calculated by subtraction. The value of the channel with the lower address is subtracted
