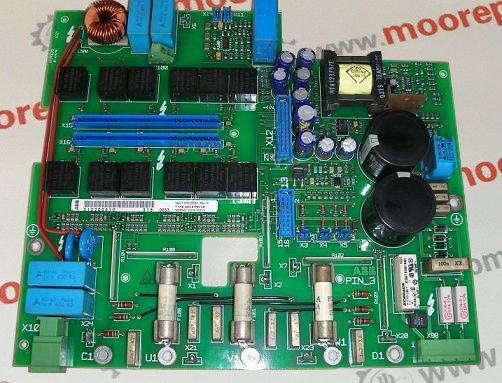

ABB Module 3ASC25H214 57120001-CV DATX130 Connection Unit For Analog Board Quick Response

ABB Module DATX130 3ASC25H214 57120001-CV ABB DATX130 CONNECTION UNIT FOR ANALOG BOARD quick response

Product Description:

The red LED Ovl. goes out when the overloaded output is switched on again automatically.
The acknowledgement of the error message, i.e. the resetting of the error flags, is carried out according to chapter B4.8 (Appendix), Acknowledgement of error messages in the basic unit.The outputs are safe against reverse polarity and forced supply of 24 V DC. Use of the digital output signal at the terminal 46
(A 62,00) for the high-speed counter The output A 62,00 can be assigned to the internal highspeed
counter by configuration. If the counter is used in the operating modes 1 or 2 (up-counter), the output A 62,00 is only available for the counter. If the output is to use as a normal digital output, it has to
be made sure, that the high-speed counter is not configured to the operating modes 1 or 2 (see also the chapter "High-speed counter").

Related Product Recommendation:

Product's Character:

Features of the digital inputs/outputs:The 8 digital inputs/outputs are arranged in one group.
The group as a whole is electrically isolated from the rest of the device. The inputs/outputs can be used individually as input, output or re-readable output. If the terminals are used as digital inputs, the input
signal delay can be configured to 7 ms (default) or to 1 ms. The configuration is performed by setting certain bits in the system constant KW 85,01 as follows: If the terminals are used as digital outputs, the output signals "1" are individually monitored by the re-readable input. If the output status is wrong, anoverall error message is generated for the involved output group. The error is displayed by the red LED Ovl. and by error flags of the PLC then. The error could have been caused by overload, shortcircuit
or missing supply voltage UP5/ZP5.
