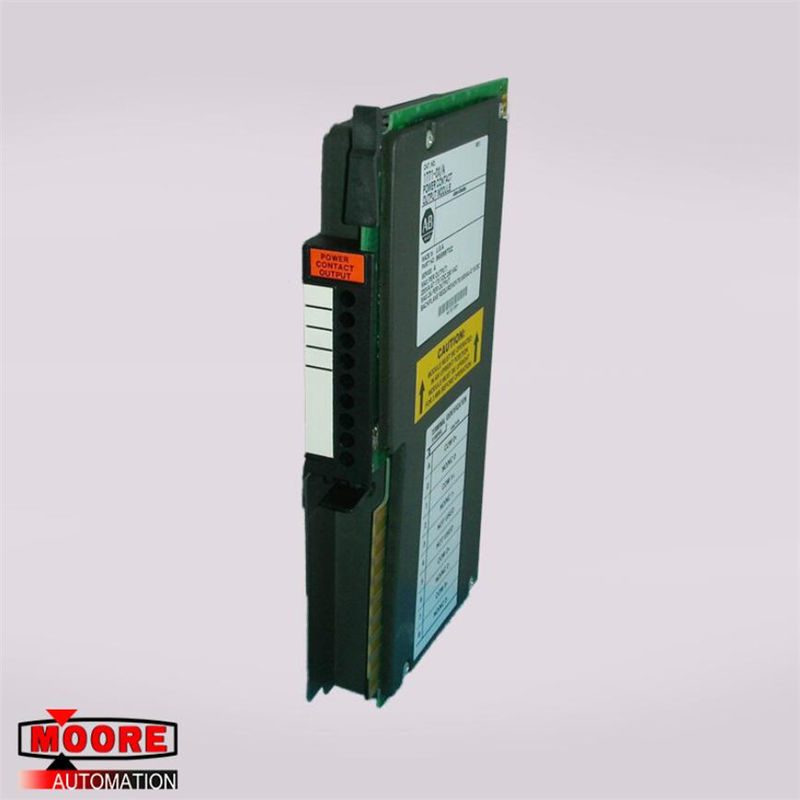

1771-OX/A 1771-WC-B Allen Bradley Power Contact Output Module 200VA AT 175VDC

Product Details:
Place of Origin: USA
Brand Name: Allen Bradley
Certification: CO.CQ
Model Number: 1771-OX/A 1771-WC-B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: inquiry
Packaging Details: new and original with factory sealed
Delivery Time: today
Payment Terms: T/T
Supply Ability: 10 pieces a day
Contact Now

Detail Information

Manufacture Year: 2020 Con 6DS1311-8AEtrol System: 1771-OX/A 1771-WC-B
Application: Nuclear Power Plant Lead Time: In Stock
Description: Allen Bradley Weight: 4lbs

Product Description



1771-OWNA/A Allen Bradley 1771 Series I/O Digital Output Module



Product Specificaion

Brand/Manufacturer Allen Bradley/USA
Part Number

1771-OX/A

Alternate Part Number 1771-WC-B
Description

Power Contact Output Module

Dimennsions 15.0 cm x 5.2 cm x 27.5 cm
Weight 0.51kg



Product Details

Specifications

Outputs per Module 4 N.O/N.C.

Module Location 1771 I/O chassis

Voltage Rating 0-250V ac rms; 0-175V dc

Current Rating 2A (maximum)

Surge Current

(Repeatable every 10 seconds)

5.5A ac peak for 5 seconds;

6A dc for 5 seconds;

15A dc for 500msec

Power Rating 200VA

Operate/Release Time 10ms maximum

On-state Contact Resistance 0.25 ohms maximum

Signal Delay 10ms on or off

Power Dissipation 2.9 Watts (max.), 2.6 Watts (min.)

Thermal Dissipation 9.9 BTU/hr (max.), 8.9 BTU/hr (min.)

Backplane Current 550mA maximum

Isolation Voltage 2500V ac rms



Environmental Conditions

Operating Temperature: 0 to 60oC (32 to 140oF)

Storage Temperature: -40 to 85oC (-40 to 185oF)

Relative Humidity: 5 to 95% (without condensation)



Keying: Between 6 and 8; Between 16 and 18

Fuse: 7A, 250V Type 3AG Slo Blow (1 per circuit)

Field Wiring Arm: Cat. No. 1771-WC

Wiring Arm Screw Torque: 7-9 inch-pounds

1771-OX/A 1771-WC-B Allen Bradley Power Contact Output Module 200VA AT 175VDC

1771-OX/A 1771-WC-B Allen Bradley Power Contact Output Module 200VA AT 175VDC
