| Place of Origin | USA |
| Brand Name | AB |
| Certification | CO.CQ |
| Model Number | 1336-BDB-SP17C 74101-482-51 |

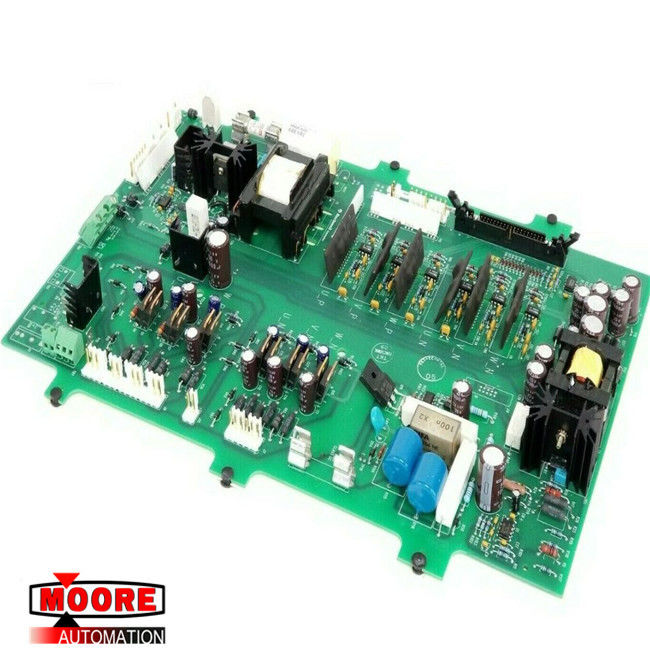

1336-BDB-SP17C 74101-482-51 AB AB SPK Drive Gate Board
⇒ Click here for good price 1336-BDB-SP17C 74101-482-51
| Brand/Manufacturer | AB/USA |
| Part Number |
1336-BDB-SP17C |
| Alternate Part Number | 74101-482-51 |
| Description | SPK Drive Gate Board |
| Dimennsions | 16.0cm x 13.2cm x 3.8cm |
| Weight | 0.7kg |
Product Details
1336-BDB-SP17C 74101-482-51 Specifications
Material
Enclosures: IP00 (Open)
Terminations:
1…45 amp (fundamental) Ratings – Finger guard IP20 terminal block
80…160 amp (fundamental) Ratings – Solid copper box lugs
200…400 amp (fundamental) Ratings – Copper tab terminals
401 amps and above – Copper tab terminals
Harmonic Compensation: All line reactors are compensated for the additional currents and high frequencies that are caused by the presence of harmonics
General Protection
Impedance: 3%
Overload Rating: 300% of fundamental current for (1) minute
IGBT Protection
First turn triple insulated offering protection up to 16 kV: 16,000 Volts per microsecond dv/dt protection; 20 kHz maximum switching frequency
Electrical
Max. Rated Voltage: 600V AC, 50/60 Hz frequency
Max. Switching Freq: 4 kHz
Temperature Rise: 115 °C
Dielectric Strength: 4000 Volts rms (5600 volts peaks)
Inductance Curve: 100% at 100% current, 100% at 150% current, 50% at 350% current
Insulation System: Class H (180 °C or better)
Impregnation: High bond strength epoxy impregnation, 4000V high dielectric strength
Environmental
Ambient Temperature: 45 °C
U.L. Listed: UL-508 - IP00, IP20, and IP11
International: Conforms to VDE 0550
CE: Not certified
