| Place of Origin | USA |
| Brand Name | AB |
| Certification | CO.CQ |
| Model Number | 1336-BDB-SP4D 74103-244-54 |

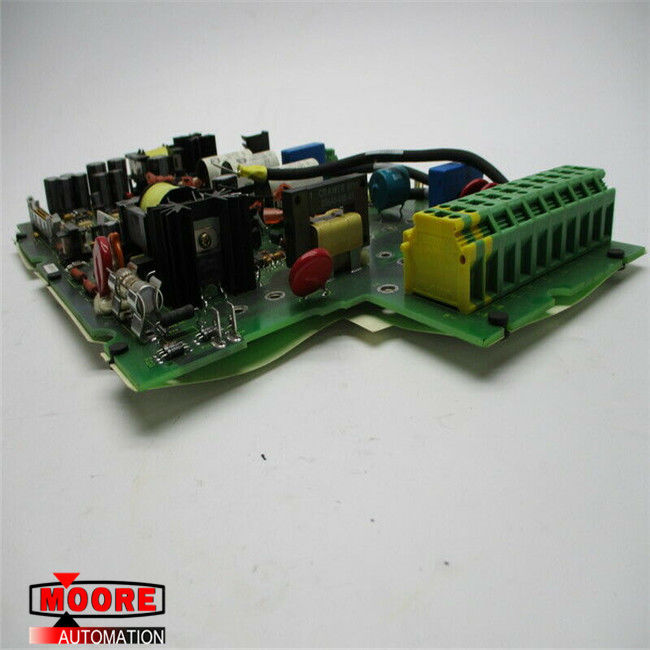

1336-BDB-SP4D 74103-244-54 AB AB PCB GATE DRIVE 460V 20HP
⇒ Click here for good price 1336-BDB-SP4D 74103-244-54
| Brand/Manufacturer | AB/USA |
| Part Number |
1336-BDB-SP4D |
| Alternate Part Number | 74103-244-54 |
| Description | PCB GATE DRIVE 460V 20HP |
| Dimennsions | 15.0cm x 14.2cm x 4.0cm |
| Weight | 0.4kg |
Product Details
The 1336-BDB-SP4D is an AB Adjustable frequency Gate Drive Board that is engineered under the 1336 series. The gate drive has a voltage of 460 Volts AC and it produces 20 Horsepower. Each of the modules effectively fits on frame sizes A, B, C, D, or E. The board also functions as a spare part for the adjustable frequency AC Drives classified under the 1336 PLUS, PLUS II, FORCE, IMPACT, and the REGEN series. The adjustable 1336-BDB-SP4D operates with AC drives that are normally rated between 3 and 800 Horsepower. The 1336-BDB-SP4D uses the DC Bus (Frame B and UP) input inductor and the Logic ride-through for the 1336-BDB-SP4D ranges between 0.5 seconds minimum and 2 seconds maximum. The drive comes with a transient protection of MOV supporting up to 6000 Volts Peak per IEEE. It also includes optional DC input terminals. The output power or the carrier frequency for the 1336-BDB-SP4D is 2 to 12 Kilo Hertz and has an output frequency range of 0 to 400 Hertz. The efficiency rating for the 1336-BDB-SP4D is 97.5% at the rated Amps or nominal line Volts. The overload capability for the 1336-BDB-SP4D rates 150% for 60 seconds while in heavy-duty mode.
1336-BDB-SP4D Technical Specifications:
Part Number/Catalog No.: 1336-BDB-SP4D
Description: PCB Gate Drive Board
Voltage: 460V AC
Horsepower: 20 HP
Frame Model: A,B,C,D, or E
Alternative Part Number: 74103-244-54
