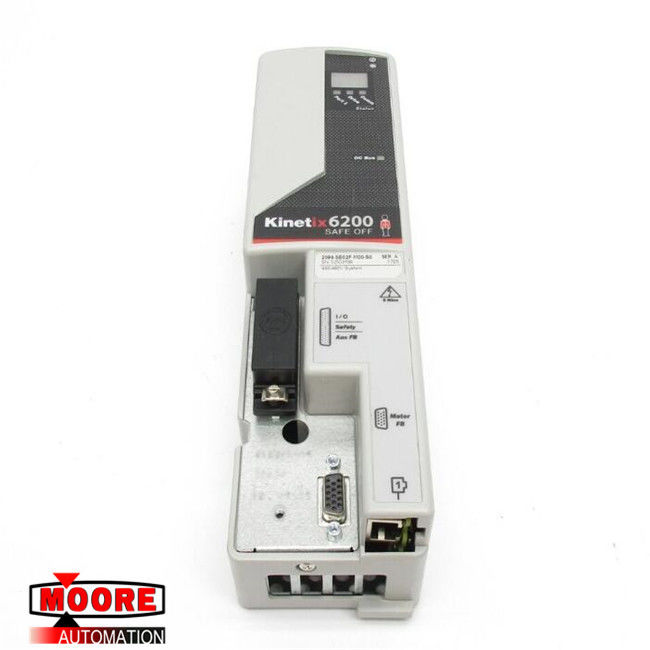

2094-SE02F-M00-S0 AB AB Sercos Control Module
⇒ Click here for good price 2094-SE02F-M00-S0
| Brand/Manufacturer |
AB/USA |
| Part Number |
2094-SE02F-M00-S0
|
| Alternate Part Number |
2094-SE02F-M00-S0 |
| Description |
Sercos Control Module |
| Dimennsions |
7.6cm x 25.4cm x 10.2cm |
| Weight |
0.7kg |
Product Details
2094-SE02F-M00-S0 specifications
Standards: IEC/EN60204-1, ISO12100, IEC 61508, IEC 61800-5-2
Safety category: Cat. 4 and PLe per EN ISO 13849-1; SIL CL3 per IEC 61508 and EN 62061
Power supply
Voltage Current, max: 21.6…28.8V DC (24V nom), 0.9…1.2 x rated voltage PELV or SELV 0.105 A
Power consumption: 3 W
SS outputs: 24V DC, 20 mA, short-circuit protected
Pulse outputs: 24V DC, 30 mA, short-circuit protected
SS inputs, max: 5 mA per input
Input pulse rejection, max: 700 μs
Input ON voltage, min: 16.5V
Input OFF voltage, max: 5V
Input OFF current, max: 2 mA
Safety reaction time, max: 12 ms
Reset_In Input, max :5 mA per input
Reset time, max: 20 ms
Conductor size: 0.25…0.75 mm2 (24…18 AWG)
Strip length: 5 mm (0.25 in.)
Terminal screw torque: 0.22…0.25 N•m (1.9…2.2 lb•in)
