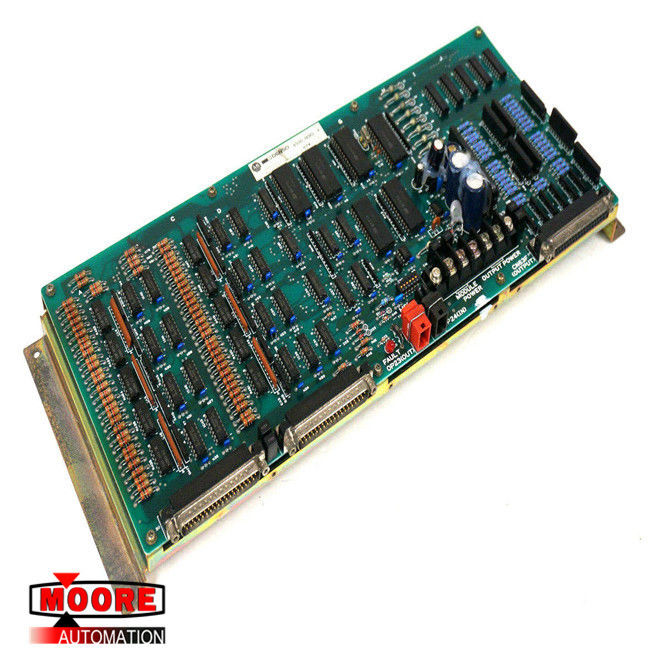

8500-HDIO Allen Bradley I/O MODULE SER. A
⇒ Click here for good price 8500-HDIO
| Brand/Manufacturer |
AB/USA |
| Part Number |
8500-HDIO
|
| Alternate Part Number |
8500-HDIO |
| Description |
I/O MODULE SER. A |
| Dimennsions |
17.5cm x 8.5cm x 5.0cm |
| Weight |
0.5kg |
Product Details
8500-HDIO Specification
Efficiency: 97.5% at rated amps, nominal line voltage
Output Frequency: 0-320 Hz (programmable)
Control Inputs
Digital:
Quantity: (3) Semi-programmable; (4) Programmable
Type
Source Mode (SRC): 18-24V = ON, 0-6V = OFF
Sink Mode (SNK): 0-6V = ON, 18-24V = OFF
Analog:
Quantity: (1) Isolated, –10 to 10V or 4-20mA; (1) Non-isolated, 0 to 10V or 4-20mA
Specification
Resolution: 10-bit
0 to 10V DC Analog: 100k ohm input impedance
4-20mA Analog: 250 ohm input impedance
External Pot: 1-10k ohm, 2 Watt minimum
Control Outputs
Relay: Quantity: (2) Programmable Form C
Resistive Rating: 3.0A at 30V DC, 3.0A at 125V, 3.0A at 240V AC
Inductive Rating: 0.5A at 30V DC, 0.5A at 125V, 0.5A at 240V AC
Optional Relay Card:
Quantity: (6) Optional Programmable Form A (Not available for Frame C drives)
Specification
