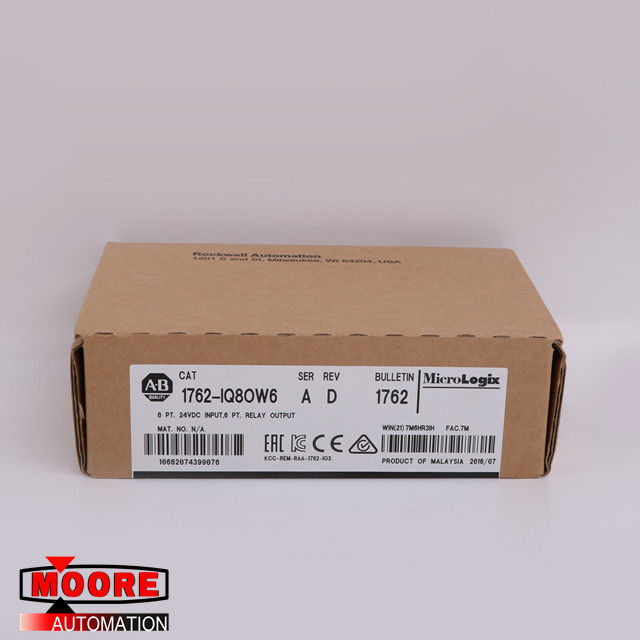

1762-IQ8OW6 1762IQ8OW6 Allen Bradley AB MicroLogix 14 Point Digital Comb Module

1762-IQ8OW6 1762IQ8OW6 Allen Bradley AB MicroLogix 14 Point Digital Comb Module

⇒ Click here for good price 1762-IQ8OW6

Product Details

The AB 1762-IQ8OW6 is a digital I/O module with 6 AC/DC relay outputs and 8 sink/source 24 Volts DC inputs. It can operate at 10 to 30 Volts DC at 86 degrees Fahrenheit and it can operate at 10 to 26.4 Volts DC at 149 degrees Fahrenheit. Its maximum heat dissipation is 5 Watts at 30 Volts DC and it is 4.4 Watts at 26.4 Volts DC, while its maximum Bus Current Draw is 110 mA at 5 Volts DC and 80 mA at 24 Volts DC. The 1762-IQ8OW6 weighs around 0.62 pounds. The 1762-IQ8OW6’s IEC input compatibility is Type 1+. Its Vendor ID code is “1”, its product code is “98”, and its product type code is “7”. The 1762-IQ8OW6 cannot be placed more than 6 modules away from the main power supply. Its minimum on-state voltage is 10 Volts DC while its on-state current is 10 mA at 5 Volts DC.

Its AC/DC outputs are normally open relay outputs with an operating voltage range of 5 to 265 Volts AC and 5 to 125 Volts DC. The output specifications include a maximum signal delay with a resistive load is 10 milliseconds for the on-delay and the maximum delay is 10 milliseconds for the off-delay. The 1762-IQ8OW6’s maximum off-state output leakage is 0 mA and its minimum output on-state current is 10 mA. The module’s maximum continuous current per common and per module are both 8 A. For the 1762-IQ8OW6’s relay contact ratings, the maximum voltage is 240 Volts AC and the maximum continuous Amperes are 2.5 A.
