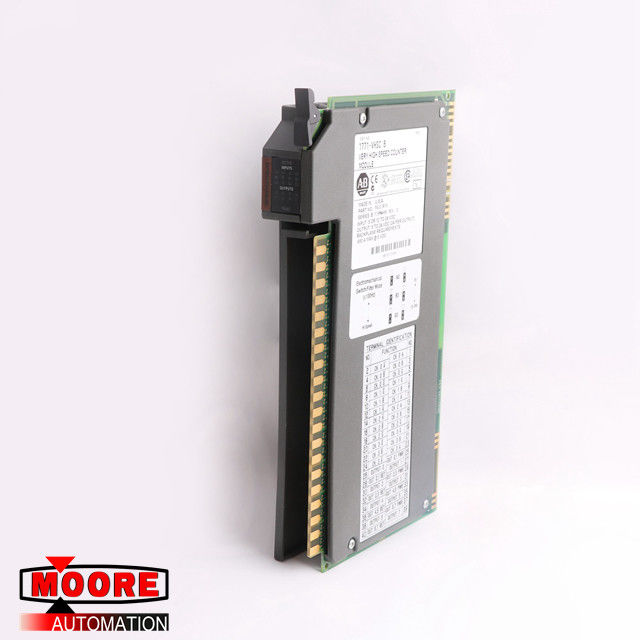

1771-VHSC 1771VHSC Allen Bradley AB Combination Module
⇒ Click here for good price 1771-VHSC
| Brand/Manufacturer |
AB/USA |
| Part Number |
1771-VHSC |
| Alternate Part Number |
1771-VHSC |
| Description |
DeviceNet Daughtercard |
| Dimennsions |
3.2x14.5x26cm
|
| Weight |
0.48 kg |
Product Details
The 1771-VHSC is a high-speed counter module developed by AB/Rockwell Automation. The 1771-VHSC module has 8 digital outputs isolated in 2 groups, 12 digital inputs (3 per counter) and a 100-microseconds module update period.
The 1771-VHSC module comes with 4 input channels configured for the rate mode, encoder mode, counter mode, and the period/rate mode. It has a programmable count value of 0 to 999,999. This high-speed module is also delivered with 2 input types (differential and single-ended inputs), which is for a 2-phase encoder mode (X1 and X4) with selectable input frequencies of 250 KHz and 500 KHz in the rate/period or rate/measurement mode. It can rise up to 1 MHz in the single-channel counter mode selected by the electromechanical switch. In addition, this I/O module also provides block transfer programming capabilities that perform interface signals and high-speed counting with any PLC. Besides, the 1771-VHSC PLC 5 module counts pulses from encoders such as AB Bulletin 845H, P, L, E, P and K, pulse generators and mechanical limit switches or proximity switches and it returns either a count or frequency rating in a binary or BCD format.
