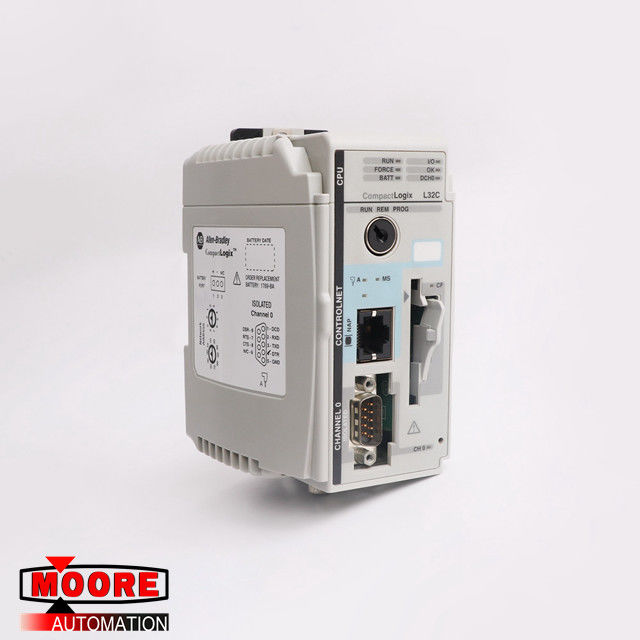

1769-L32C 1769-L32C Allen Bradley AB CompactLogix 750KB ControlNet Controller
⇒ Click here for good price 1769-L32C
Brand/Manufacturer | AB/USA |
Part Number | 1769-L32C |
Alternate Part Number | 1769-L32C |
Description | DeviceNet Daughtercard |
Dimennsions |
6.8x9.5x13.2cm |
Weight | 0.34 kg |
Product Details
The 1769-L32C is a CompactLogix controller that is made by AB/Rockwell Automation. This controller is important because each ControlNet network requires at least one module like it that is able to store parameters and network configuration data after the start-up process. The 1769-L32C can store data and at the same time work as a back-up. All of these actions are automatic.
The AB 1769-L32C CompactLogix controller comes with different communication ports which are the RS-232, NAP, and the ControlNet ports on channel 4. It also uses a memory of 750 Kilobytes and it has 16 I/O modules. The AB 1769-L32C CompactLogix controller has 3 I/O banks and it has a backplane current of 650 milliamps at 5 Volts DC and 40 milliamps at 24 Volts DC. The power dissipation of the 1769-L32C logic module is 4.21 Watts. The battery of the AB 1769-L32C CompactLogix controller can be replaced only by the AB 1769-BA battery.
The AB 1769-L32C CompactLogix controller operates with an operating temperature range of 0 to 60 degrees Celsius and a relative humidity of 5 to 95%. It is important to maintain the right temperature in order to preserve the life of the module.
