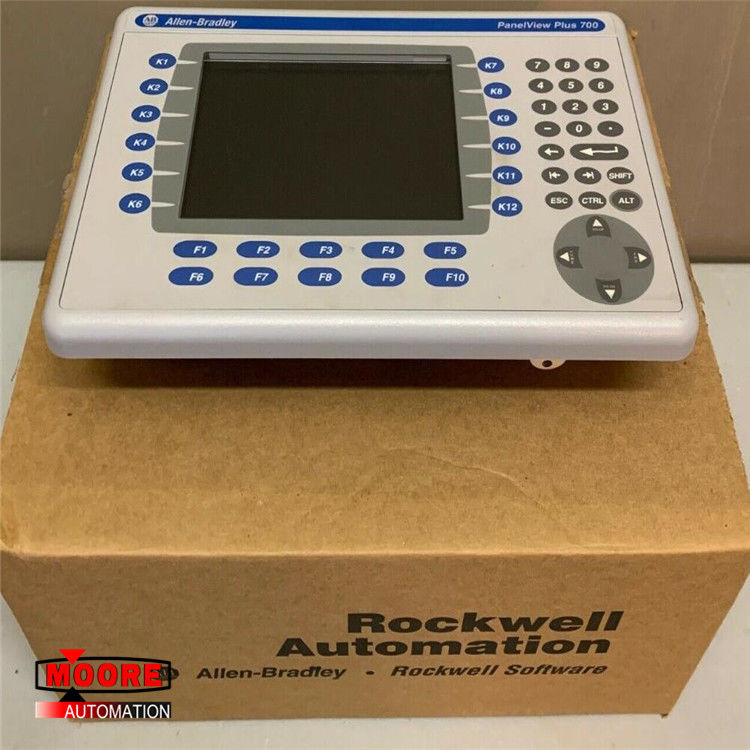

2711P-K7C4A8 2711PK7C4A8 Allen Bradley AB PanelView Plus 6 700 7-in, Color, Keypad, Std, AC

2711P-K7C4A8 2711PK7C4A8 Allen Bradley AB PanelView Plus 6 700 7-in, Color, Keypad, Std, AC

⇒ Click here for good price 2711P-K7C4A8

Product Details

The current Allen Bradley Panelview 6 Plus 2711P-K7C4A8 is an HMI that allows the user to interact with their machine. This operator interface has a 6.5 in. Color Display. This Panelview Plus 6 allows the user to connect using FactoryTalk View Machine Edition software and an Ethernet and RS-232 communication port with a 2711-NC13 communication cable(s). The user is able to control the operator interface by utilizing the Keypad to input information and data. This unit is powered using 100-240 VAC power. This unit has the following internal memory: 512 MB RAM. If applicable this unit has an internal backlight replacement part number of 2711P-RL7C2. The approximate shipping weight and dimensions are 8 lbs. and 14 x 11 x 8 in.

The most common Series are Series A and Series B and the most common firmware include 6.00-8.10. EtherNet/IP (Ethernet Industrial Protocol) is an open industrial network that supports real time I/O messaging, as well as message exchange. The Ethernet port connects to a controller on an EtherNet/IP network by using both the network and standard Ethernet connections. This port can work with application transfers and printing as well. The EtherNet/IP screen displays and allows the user to modify some of the EtherNet/IP communication settings for a PanelView terminal.

The 2711P-RN20 Ethernet communication module is available for the 700 to 1500 terminals if another Ethernet port is required. The module has its own unique IP address. This port has an RJ45, 10/100Base-T connector for network communication and supports MDI/MDI-X connections. The parameters are downloaded with the application.

AB News

Combination Lighting Contactors with Disconnect Switch Features

Bulletin 502L Combination Lighting Contactors with Disconnect Switch combine switching and over-current protection in the same enclosure. These contactors consist of a Bulletin 500L 3-pole lighting contactor and a disconnect switch (fused or non-fused) mounted in a common enclosure.

Includes current ratings 15…300 A
Offers fusible or non-fusible disconnect switch
Includes painted metal enclosures: Type 1, Type 3R/4/12
Includes stainless steel enclosures: Type 4/4X
Includes non-metallic enclosures: Type 4/4X
Offers a wide variety of factory modifications
