2711P-T10C4D1 2711PT10C4D1 Allen Bradley AB Panelview Plus 1000 Touchscreen

2711P-T10C4D1 2711PT10C4D1 Allen Bradley AB Panelview Plus 1000 Touchscreen comes with a 10.4 in Color Display, Ethernet

⇒ Click here for good price 2711P-T10C4D1

Product Details

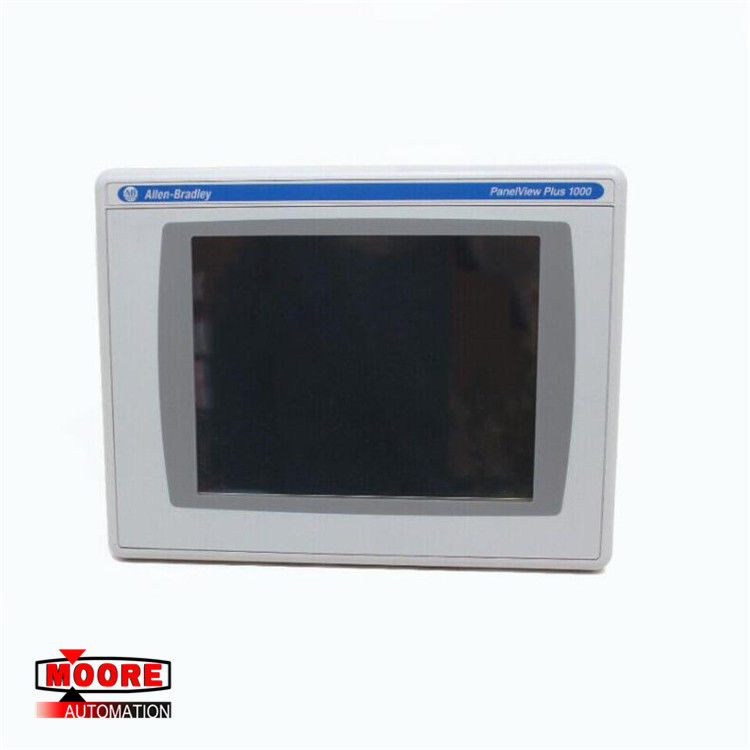

The 2711P-T10C4D1 is an AB PlanelView Plus 1000 terminal. The 2711P-T10C4D1 is an obsolete operator terminal that allows the user to interface with their machine. The 2711P-T10C4D1 terminal allows the operator to easily observe, manipulate and display information graphically. This enables operators to quickly understand the status of their application. PanelView Plus is programmed with RSView Studio Machine Edition. Some of the features of the 2711P-T10C4D1 include multi-vendor communications, trending, expressions, data logging, animation, and RSView Studio direct browsing of RSLogix 5000 addresses. 2711P-T10C4D1 has a 10.4-inch Color Display screen. The user is able to control the operator terminal using the Touchscreen to input information and data.

This unit is powered using 18 to 32 Volts DC power. The 2711P-T10C4D1 has 64 MB of internal memory. The approximate shipping weight and dimensions are 9 lbs. and 16 x 11 x 8 inches. The most common Series are Ser A, B, C, D, and F. The most common firmware for this Panelview Plus include 3.13 to 4.48. EtherNet/IP (Ethernet Industrial Protocol) is an open industrial network that supports real time I/O messaging, as well as message exchange. The Ethernet port connects to a controller on an EtherNet/IP network by using both the network and standard Ethernet connections. This port can work with application transfers and printing as well. The EtherNet/IP screen displays and allows the user to modify some of the EtherNet/IP communication settings for a PanelView terminal such as the 2711P-T10C4D1.

AB News

Combination Lighting Contactors with Disconnect Switch Features

Bulletin 502L Combination Lighting Contactors with Disconnect Switch combine switching and over-current protection in the same enclosure. These contactors consist of a Bulletin 500L 3-pole lighting contactor and a disconnect switch (fused or non-fused) mounted in a common enclosure.

Includes current ratings 15…300 A
Offers fusible or non-fusible disconnect switch
Includes painted metal enclosures: Type 1, Type 3R/4/12
Includes stainless steel enclosures: Type 4/4X
Includes non-metallic enclosures: Type 4/4X
Offers a wide variety of factory modifications
