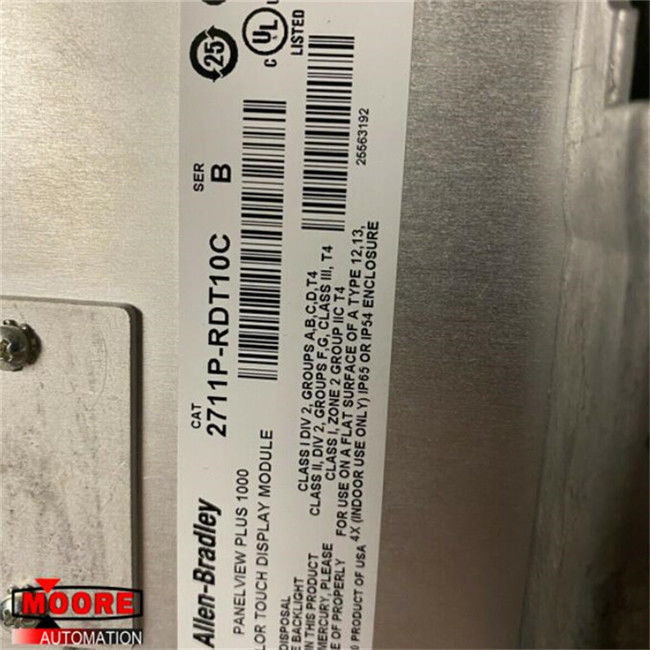

2711P-RDT10C 2711PRDT10C Allen Bradley AB Panelview Plus 1000 10.4" Color Touch Display Module

2711P-RDT10C 2711PRDT10C Allen Bradley AB Panelview Plus 1000 10.4" Color Touch Display Module

⇒ Click here for good price 2711P-RDT10C

Product Details

The Allen Bradley 2711P-RDT10C is a PanelView Plus replacement part for PanelView Plus graphics terminals. It is an HMI (Human-Module Interface) that lets users control, monitor, or display information graphically. This module has a 10.4-inch flat-panel color display screen that has a minimum resolution of 640 x 480 and 18-bit graphics. It supports an operator input via the touchscreen. This unit is compatible with the 2711P-RP1, the 2711P-RP2, the 2711P-RP8D, the 2711P-RP9D, and several other logic modules, depending on the series of the display module. The 2711P-RDT10C terminal runs the Windows CE 4.1 operating system. By default, it is shipped as a closed system, which launches a FactoryTalk View Machine Edition application on startup. It can be configured as an open system for desktop access and has an Ethernet port and RS-232 or USB port for communication. The 2711P-RDT10C terminal contains several improvements from other PanelView Plus 400 terminals, including an increased processor speed, system memory, storage space, and illumination, to name just a few.

It can be connected to external devices and supports ActiveX controls and remote connectivity. The 2711P-RDT10C can be panel mounted in NEMA, UL, or IP rated enclosures. The 2711P-RDT10C terminal has standard Windows features, such as a command processor, Explorer shell, Network user interface, and a VNC server. It also has a built-in PDF viewer for reading content documents and a mechanism for creating backups. The 2711P-RDT10C uses vector-based graphics and provides data management through CSV files. With the login feature, it facilitates data storage and modification.

Why choose us

1. We will provie you the product info and picuture
2.Large stock, fast delivery
3.Competitive prices and immdiate quotation
4.Professional service,professional technical support
5. Warranty time is one year.
6. Strict test machine before shipment.
7. We could help you to get any components which is difficult to get
