Product Details

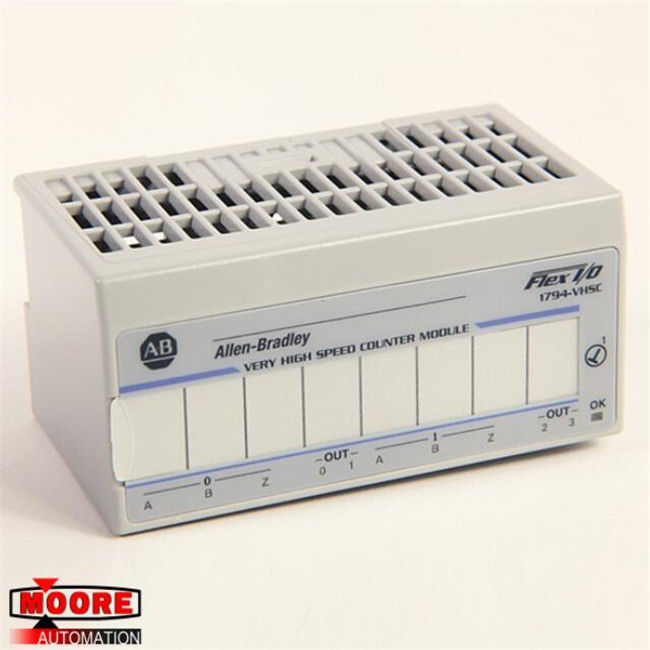

The 1794-VHSC Flex I/O High-Speed Counter by AB is an intelligent I/O module which performs high-speed counting for most industrial applications and provides signals to all compatible programmable controller with EtherNet capability. The module has 2 input channels, with 2 counters per input channel, configured for 3 encoder modes with 5V DC or 15-24V DC terminations. The 1794-VHSC has an input rating of 5V DC or 15-24V DC (depending on the terminal base’s termination) and an input current of 19.1mA at 5V DC and 25.7mA at 6V DC using a 5V DC termination. It also has an input current of 6.1mA at 15V DC and 10.2mA at 24V DC with 15-24V DC termination, and an OFF-state voltage of <1.25V DC and <1.8V DC with 5V DC termination and 15-24V DC termination. The 1794-VHSC also has a counter-dependent input OFF-state and ON-state ratings and its input frequency can get to 1MHz. It has 2 isolated outputs (with 2 groups) with an electrical rating 0.5A at 5V DC and 1.0A at 12-24V DC.

The 1794-VHSC’s outputs have an output supply voltage range of 5-7V DC and 10-31V DC, with a leakage current of less than 300μA in its OFF state, and a voltage loss of 0.9V DC at 0.5A with 5V DC termination and 0.9V DC at 1.0A with 12-24V DC termination. The 1794-VHSC is installed on either the 1794-TB3G or 1794-TB3GS terminal base unit and uses a 24V DC nominal external power supply with a supply range of 19.2-31.2V DC with a current of 100mA at 24V DC. It has 1 key-switch position and provides 50V isolation using basic insulation type between 6 isolated areas tested at 850V DC for 1s. The 1794-VHSC has a Flexbus current of 75mA at 5V DC and dissipates 5W heat at 31.2V DC. Its operational temperature ranges between 0 and 55 °C (32 and 131 °F) at 5-95% humidity condition and the module has dimensions of 3.7in x 3.7in x 2.7in with the module installed.
