| Place of Origin | USA |
| Brand Name | AB |
| Certification | CO.CQ |
| Model Number | 1769-L19ER-BB1B |

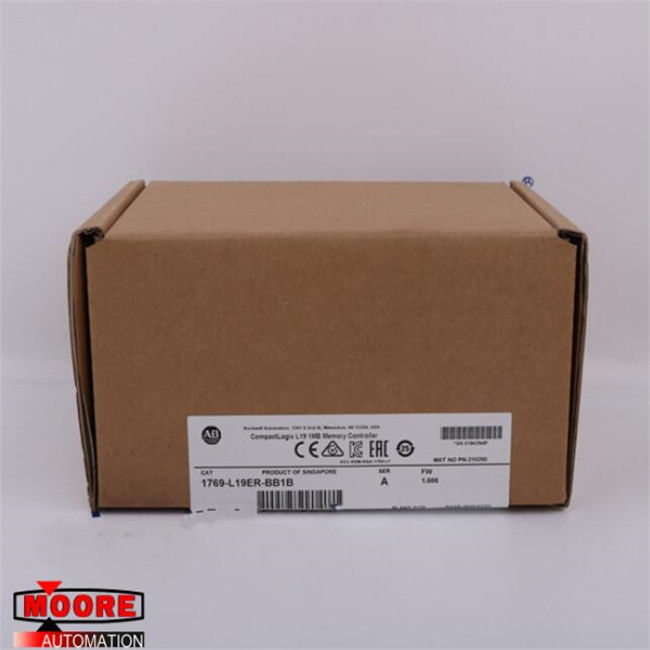

1769-L19ER-BB1B 1769L19ERBB1B Allen Bradley AB CompactLogix L19 1MB Memory Controller
⇒ Click here for good price 1769-L19ER-BB1B
| Brand/Manufacturer | AB/USA |
| Part Number |
1769-L19ER-BB1B |
| Alternate Part Number | 1769-L19ER-BB1B |
| Description | MOTOR SERVO |
| Dimennsions |
19.5x13.5x11cm |
| Weight | 0.75kg |
Product Details
The AB 1769-L19ER-BB1B is part of the CompactLogix 5370 L1 Programmable Automation Controllers (PAC) series. It offers high-performance motion solutions in a compact design and cost-efficient package. It features dual EtherNet ports and comes with an integrated switch that allows support for traditional star, linear, and DLR (Device Level Ring) topologies. DLR capability enhances network resiliency where individual parts can be replaced without compromising production.
The 1769-L19ER-BB1B Controller has one USB port, supports local expansion modules, and allows the use of an SD (Secure Digital) card for nonvolatile memory. It uses a POINT I/O (1734) backplane and can accommodate up to 8 I/O expansions. The 1769-L19ER-BB1B’s embedded I/O DC digital modules consist of 16 inputs and 16 outputs. It features a maximum capacity of 8 EtherNet nodes and a user memory of 1 MB. This controller ships with a 1GB 1784-SD1 card but can support a 2GB SD card (1784-SD2).
The 1769-L19ER-BB1B DIN Rail Mount PAC has a 24V DC input, isolated embedded power supply with 10-28.8V DC operating voltage range. Its power terminal accepts 1 or 2 wires size 0.051-3.31 mm2 (30 and 12 AWG) with solid or stranded copper wire rated at 75 °C (167 °F) or greater and 1.2 mm (3/64 in.) insulation. Its minimum line requirement (VDC) is 30VA.
