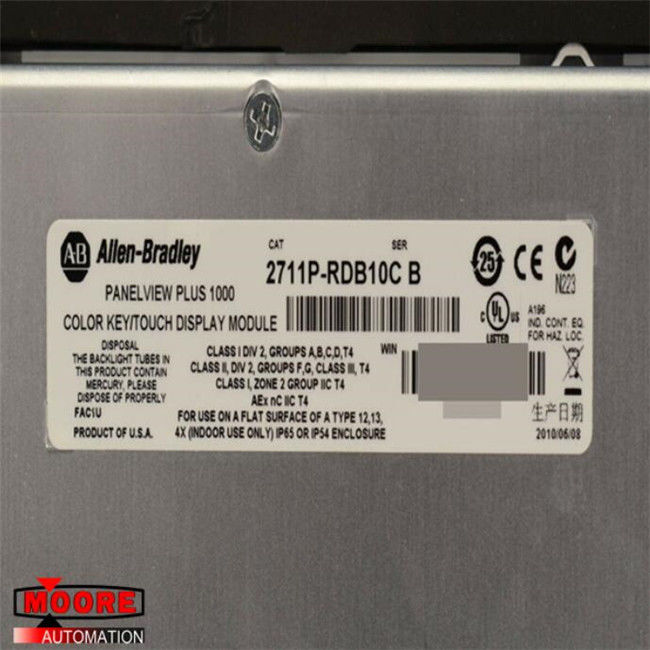

2711P-RDB10C 2711PRDB10C Allen Bradley AB Panelview Plus 1000 Display Module

2711P-RDB10C 2711PRDB10C Allen Bradley AB Panelview Plus 1000 Display Module

⇒ Click here for good price 2711P-RDB10C

Product Details

The AB 2711P-RDB10C is a PanelView Plus display module that is a replacement component for a PanelView Plus graphics terminal. It is an HMI (Human Machine Interface) that lets the user control application information. It has a 10.4-inch flat-panel color display with a minimum resolution of 640 x 480 and 18-bit graphics. It supports operator input via 32 function keys and a touchscreen.

The 2711P-RDB10C terminal runs the Windows CE 4.1 operating system. By default, it ships with a FactoryTalk View Machine Edition application on startup. It can be configured as an open system for desktop access and has Ethernet ports and RS-232 or USB ports for communication. The 2711P-RDB10C has many improvements over other PanelView terminals including increased processor speed, system memory, storage space, and illumination. It can be connected to various external peripherals such as keyboards and printers. It also supports ActiveX controls and remote connectivity.

The 2711P-RDB10C terminal also provides standard Windows features like the command processor, Explorer shell, Network user interface, and VNC server. It has a built-in PDF viewer for reading content documents and a mechanism for creating backups which can be restored. It uses vector-based graphics and provides data management through CSV files. The login feature facilitates date storage and modification. This display module can be used with different Panelview Plus Logic modules such as the 2711P-RP1 and the 2711P-RP8D.

Our service

100% full New - Original Factory Seal

Warranty: 12 months

Package: Original packing with cartons

Delivery time: Shipped in 3 days after payment
