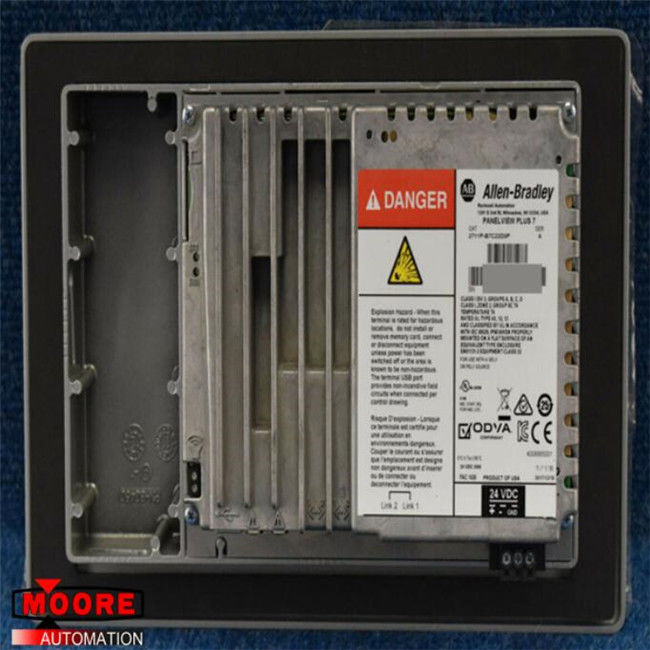

2711P-B7C22D9P 2711PB7C22D9P Allen Bradley AB Panelview Plus 7 Terminal, Performance Model
  • 2711P-B7C22D9P 2711PB7C22D9P Allen Bradley  AB  Panelview Plus 7 Terminal, Performance Model
  • 2711P-B7C22D9P 2711PB7C22D9P Allen Bradley  AB  Panelview Plus 7 Terminal, Performance Model

2711P-B7C22D9P 2711PB7C22D9P Allen Bradley AB Panelview Plus 7 Terminal, Performance Model

Place of Origin USA
Brand Name AB
Certification CO.CQ
Model Number 2711P-B7C22D9P
Product Details
Manufacture Year:
2020
Con 6DS1311-8AEtrol System:
2711P-B7C22D9P
Application:
Nuclear Power Plant
Lead Time:
In Stock
Description:
AB
Weight:
4lbs
High Light:

allen bradley cpu

,

controlnet bridge module

Payment & Shipping Terms
Minimum Order Quantity
1
Price
inquiry
Packaging Details
new and original with factory sealed
Delivery Time
today
Payment Terms
T/T
Supply Ability
10 pieces a day
Product Description



2711P-B7C22D9P 2711PB7C22D9P Allen Bradley AB Panelview Plus 7 Terminal, Performance Model



⇒ Click here for good price 2711P-B7C22D9P



Brand/Manufacturer   AB/USA
Part Number

  2711P-B7C22D9P

Alternate Part Number   2711P-B7C22D9P
Description   MOTOR SERVO
Dimennsions

  10.2 cm x 17.8 cm x 15.2 cm

Weight  1.5 kg



Product Details

The 2711P-B7C22D9P Performance Terminal by AB is a high-performance PanelView Plus 7 interface device with a 6.5-inch TFT display that runs on 24V DC nominal The 2711P-B7C22D9P is designed for the control and management of industrial automated devices connected to the CompactLogix 5370 and to the ControlLogix 5570 controllers. Users can easily set application parameters via it stainless-steel keypad, and its resistive analog touchscreen with an anti-glare shield that can withstand 100g of operational force. The 2711P-B7C22D9P offers a 132mm x 99mm (5.2in x 3.9in) touchscreen area, with a 640 x 480 VGA resolution in 18-bit color graphics and with an aspect ratio of 4:3. Its display brightness is 300cd/m2 (Nits), and an LED solid-state non-replaceable backlight with about 50,000hrs of half-life. The 2711P-B7C22D9P also has an internal battery-backed clock with +/-2 minutes per month of clock accuracy and it runs on a replaceable battery with a lifespan of at least 4 years. It allows for long-term storage of applications in its 512MB of user memory and also with its 512MB of RAM. For external storage, it supports an SD card slot.


The device comes with 2 USB high-speed 2.0 host ports (Type A), which support removable flash drives for external storage, and it comes with 1 high-speed 2.0 device port (Type B), and it connects to the Ethernet Network through its double 10/100 base-configured Ethernet ports, which support Device Level Ring (DLR), linear, or star network topologies. The 2711P-B7C22D9P runs the Windows CE Operating System with Extended Features and MS Office Viewers (including FTP, VNC client-server, ActiveX controls, PDF reader, and support for third-party devices). It is also compatible with the FactoryTalk View Studio ME software and the FactoryTalk ViewPoint software, version 2.6 or later. The 2711P-B7C22D9P requires an input voltage ranging between 18 and 30V DC, with a 50W maximum power consumption at 2.1A and 24V DC from either a SELV or a PELV 24V DC power source. The device has an operational temperature range of 0-55 °C (32-131 °F) at a relative humidity range of 5-95% without condensation, and it can be stored under a temperature range of -25-70 °C (-13-158 °F). The 2711P-B7C22D9P has a maximum operating altitude of 2000m without de-rating, and it can successfully withstand an operational shock of 15G and an operational vibration of 2G. It weighs about 1.47kg (3.25lb), and measures about 179mm x 285mm x 69.6mm (7.05in x 11.22in x 2.74in).
