| Place of Origin: | USA |
| Brand Name: | AB |
| Certification: | CO.CQ |
| Model Number: | 1771-IL |

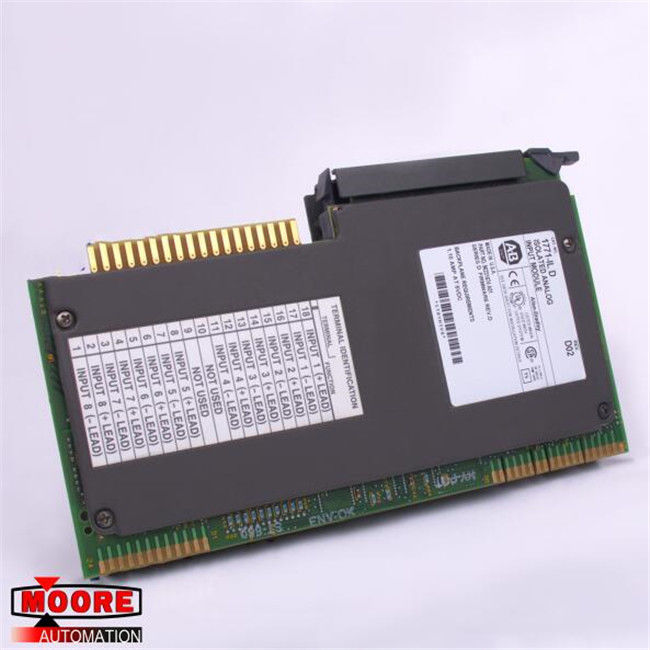

1771-IL 1771IL AB AB Analog Input Module
⇒ Click here for good price 1771-IL
| Brand/Manufacturer | AB/USA |
| Part Number |
1771-IL |
| Alternate Part Number | 1771-IL |
| Description | MOTOR SERVO |
| Dimennsions |
24x14.7x3cm |
| Weight | 0.7kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The AB 1771-IL is an analog input module with Eight (8) fully isolated differential input channels. This module belongs to the legacy PLC5 Programmable Logic Controller (PLC) platform that is manufactured by AB. This module is compatible for use with instruments that provides voltage and current signals. Specifically, signal range supported by this controller are 1 to 5V dc, 0 to 5V dc, -5 to +5V, -10 to +10V dc, 0 to 10V dc, for Voltage and 4 to 20mA, 0 to 20mA, and -20 to +20mA for Current signals.
Once an analog input signal is received, the 1771-IL converts the signal to 0000 to +409510 for unipolar ranges (0 to 5V, +1 to +5V, 0 to +20mA, and +4 to +20mA) and -409510 to 409510 for bipolar ranges +5V, +10V, +20mA input ranges. Unipolar refers to a value where counting start at Zero (0). Bipolar refers to a value wherein the maximum positive number has a negative complement. Basically, a unipolar number has no sign while a bipolar number has a sign. This module features 16-bit binary over full range resolution.
The Typical accuracy for Voltage is - 0.01% of full-scale range @ 25 Deg. Celsius while Maximum resolution is 0.05% of full-scale range @ 25 Deg. Celsius. For Current, Typical resolution is 0.06% of full- scale range @ 25 Deg. Celsius while the Maximum resolution is 0.1% of full scale range @ 25oC (Includes 0.05% when using internal current resistor)
Our service
100% full New - Original Factory Seal
Warranty: 12 months
Package: Original packing with cartons
Delivery time: Shipped in 3 days after payment
