1734-OE2V 1734OE2V AB AB Analog Output Module

Name: 1734-OE2V 1734OE2V AB AB Analog Output Module
Brand: MOORE AUTOMATION LIMITED
SKU: 1734-OE2V
Availability: InStock

Product Details:

Place of Origin:	USA
Brand Name:	AB
Certification:	CO.CQ
Model Number:	1734-OE2V

Detail Information

Place of Origin:

USA

Brand Name:

Certification:

CO.CQ

Model Number:

1734-OE2V

Manufacture Year:

2020

Con 6DS1311-8AEtrol System:

1734-OE2V

Application:

Nuclear Power Plant

Lead Time:

In Stock

Description:

Weight:

4lbs

Highlight:

High Light

Highlight:

1734-OE2V

Analog Output Module

AB 1734-OE2V

Trading Information

Minimum Order Quantity:

Price:

inquiry

Packaging Details:

new and original with factory sealed

Delivery Time:

today

Payment Terms:

T/T

Supply Ability:

10 pieces a day

Product Description

1734-OE2V 1734OE2V AB AB Analog Output Module

⇒ Click here for good price 1734-OE2V

Brand/Manufacturer	AB/USA
Part Number	1734-OE2V
Alternate Part Number	1734-OE2V
Description	MOTOR SERVO
Dimennsions	1.1x5.5x7.6cm
Weight	0.04kg

Contact Us

Email: miya@mvme.cn (CLICK)

QQ: 2851195450

Tel: 86-18020776792(CLICK)

Skype:miyazheng520(CLICK)

Product Details

The AB 1734-OE2V POINT I/O Analog Output Module with single-ended, non-isolated 2-channels that converts digitally processed data to analog output voltage. The module has a resolution of 14 bits (13 plus sign) 1.28C/cnt in unipolar or bipolar modules. Until the communication is set, it has a 0V output voltage. Its user-configurable output voltage is 0-10V. (-0.0V under, +0.5V over) +10V user configurable (-0.5V under, +0.5V over). The 1734-OE2V operates Uni-polar or Bipolar modules. Its default module mode is 0-10V DC and it has a typical mode of -10 - +10V DC. It has a default scaling point of 0 - 10000. The 1734-OE2V’s absolute accuracy comes with a 0.1% full scale at 25°C. Its accuracy drift with temperature is 5ppm/deg. C.

The AB 1734-OE2V has a current load on the voltage output of 3 mA with a digital to analog conversion type. Its conversion rate is 20’s, it is factory-calibrated, and it has a format of signed integers. Its max point-bus current is 75 mA at 5V DC and it has a max power dissipation of 1W. Its thermal dissipation is 3.4BTU/hr. The 1734-OE2V has an isolation voltage of 50V continuous and the module has been tested to withstand 2200V DC at 60 s. It has a nominal voltage of 24V DC and a voltage range from 10-28.8V DC. Its current supply is 35 mA at 24V DC including outputs of 3mA.

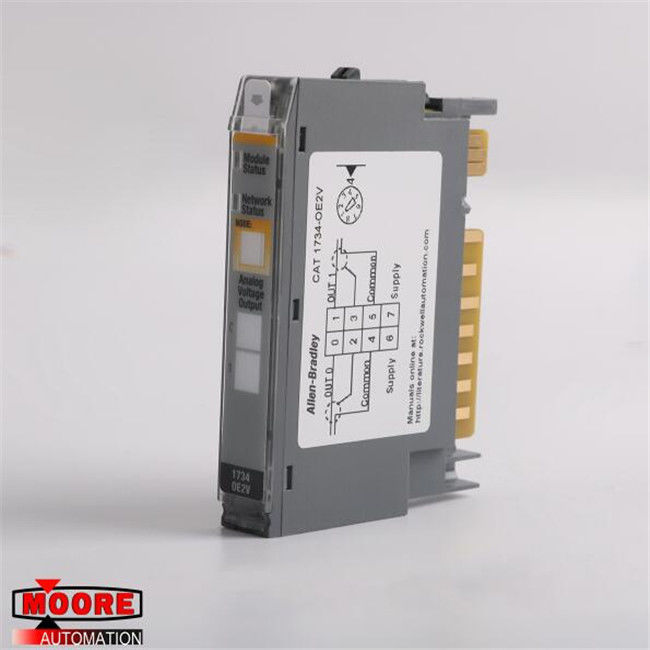

1734-OE2V 1734OE2V AB AB Analog Output Module 0

Our service

100% full New - Original Factory Seal

Warranty: 12 months

Package: Original packing with cartons

Delivery time: Shipped in 3 days after payment
