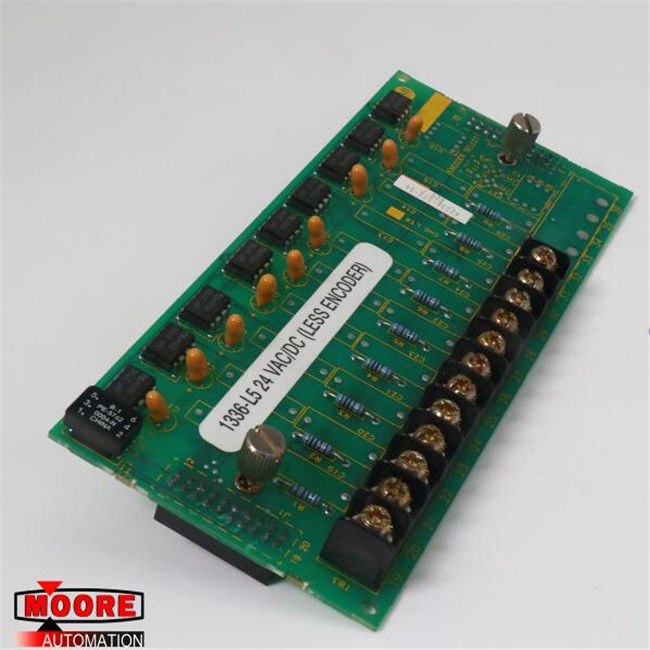

1336-L5 1336L5 AB AB Control Interface Board - Less Encoder
⇒ Click here for good price 1336-L5
| Brand/Manufacturer |
AB /USA |
| Part Number |
1336-L5
|
| Alternate Part Number |
1336-L5 |
| Description |
MOTOR SERVO |
| Dimennsions |
16.3x7.2x3cm
|
| Weight |
0.1kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The AB 1336-L5 +24 Volts AC/DC Control Interface Board is a logic control interface option board for the 1336 adjustable frequency AC drives, which provides a means of interfacing various drive commands and functions. This board, like all other logic interface boards, is located on Port A of the main control board, and it has 9 control inputs, which can be programmed for any selected function. To function properly, the 1336-L5 logic control interface board requires a circuit capable of operating at high = true logic, and it requires 24 Volts AC/DC user-supplied voltage to function. This board also functions properly with a circuit capable of generating no more than 8 Volts DC/10 Volt AC and 1.5/2.5 mA in the low state, and a voltage range of +20 to +26 Volts AC, with a source current of 10 mA for each input in the high state.
The 1336-L5 can be used to program various drive commands and functions, and among those functions are 2 drive accel/decel control inputs which allow users to select the acceleration and deceleration times the drive uses. The 1336-L5 can also be used for local control, which gives users exclusive control of the drive logic, and it also helps control the Fwd/Reverse function, which controls reverse and forward direction operation. This board can also be used to control other various drive functions like the Enable, Flux Enable, Jog, Digital Potentiometer, Ramp, Reset, and Start functions. The 1336-L5 is installed on the main control board at pins 2 and 3, and 17 and 18 of the J1 jumper on the main control board, and it is compatible with the 1771-OB, -OQ, -OBB, -OBD, -OBN, and –OQ16 PLC modules.
