1734-IB4 1734IB4 AB AB 4 Channel Input Module

Name: 1734-IB4 1734IB4 AB AB 4 Channel Input Module
Brand: MOORE AUTOMATION LIMITED
SKU: 1734-IB4
Availability: InStock

Product Details:

Place of Origin:	USA
Brand Name:	AB
Certification:	CO.CQ
Model Number:	1734-IB4

Detail Information

Place of Origin:

USA

Brand Name:

Certification:

CO.CQ

Model Number:

1734-IB4

Manufacture Year:

2020

Con 6DS1311-8AEtrol System:

1734-IB4

Application:

Nuclear Power Plant

Lead Time:

In Stock

Description:

Weight:

4lbs

Highlight:

High Light

Highlight:

1734-IB4

4 Channel Input Module

AB 1734-IB4

Trading Information

Minimum Order Quantity:

Price:

inquiry

Packaging Details:

new and original with factory sealed

Delivery Time:

today

Payment Terms:

T/T

Supply Ability:

10 pieces a day

Product Description

1734-IB4 1734IB4 AB AB 4 Channel Input Module

⇒ Click here for good price 1734-IB4

Brand/Manufacturer	AB/USA
Part Number	1734-IB4
Alternate Part Number	1734-IB4
Description	MOTOR SERVO
Dimennsions	8x6x1.7cm
Weight	0.04kg

Contact Us

Email: miya@mvme.cn (CLICK)

QQ: 2851195450

Tel: 86-18020776792(CLICK)

Skype:miyazheng520(CLICK)

Product Details

The AB 1734-IB4 POINT I/O is a DIN rail mountable Four (4) input channel module. Use zinc plate, yellow chromate steel DIN rail when mounting this module. Materials like aluminum or plastic may corrode or oxidize and poor conductors that may cause improper or intermittent grounding. Attach the DIN rail safely onto the installed surface approximately every 200 mm (7.8 inches) and use the anchors appropriately. All cables are made to the removable Terminal Block (RTB) installed at the bottom of the installation.

The AB 1734-IB4 has a maximum POINTBus current of 75 mA at 5V DC. The power dissipation of this module is 1W and the thermal dissipation is 3.4 BTU/hr. The field power voltage range of the 1734-IB4 is 10-28.8V DC while the isolation voltage is 50V (continuous). This module has a minimal on-state voltage of 10V DC. The 1734-IB4 has a nominal on-state voltage of 24V DC. This module has a maximal on-state voltage of 28.8V DC. This module has a minimal on-state current of 2 mA. This module has a nominal on-state current of 4 mA. This module has a maximal on-state current of 5 mA. This module has a maximal off-state voltage of 5V DC. The 1734-IB4 has a minimal off-state current of 1.5 mA. This module has a nominal input impedance of 3.6 kΩ. This module has a maximal input impedance of 4.7 kΩ. The weight of the 1734-IB4 is 31.8g (1.12 oz). This module has dimensions of 56 x 12 x 75.5 mm (2.2 x 0.47 x 2.97 inch). This module has 4 yellow input status indicators.
The 1734-IB4 is an AB automation component that is used for implementing distributed I/O application for Programmable Logic Controller (PLC) based systems. This module is a Four (4) channel sinking input module that belongs to the 1734 Point IO product family. It operates

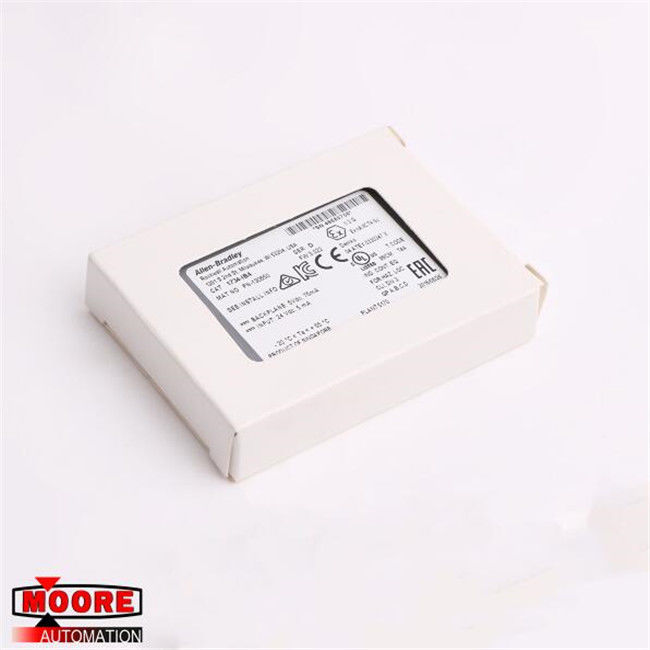

1734-IB4 1734IB4 AB AB 4 Channel Input Module 0

Our service

100% full New - Original Factory Seal

Warranty: 12 months

Package: Original packing with cartons

Delivery time: Shipped in 3 days after payment
