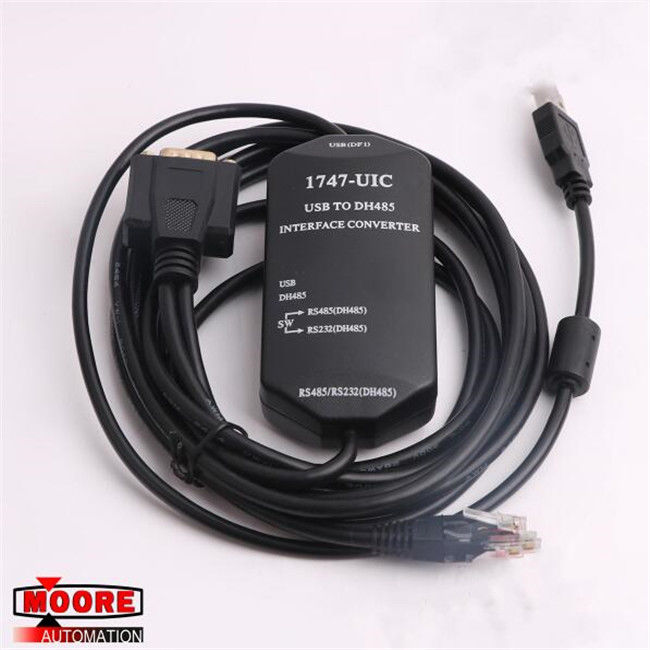

1747-UIC 1747UIC AB AB SLC 500 USB-to-DH-485 Interface Converter
⇒ Click here for good price 1747-UIC
| Brand/Manufacturer |
AB/USA |
| Part Number |
1747-UIC
|
| Alternate Part Number |
1747-UIC |
| Description |
MOTOR SERVO |
| Dimennsions |
18x13x4cm
|
| Weight |
0.2kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The 1747-UIC SLC 500 USB-to-DH-485 Interface Converter by AB is an interface converter which gives computers USB ports, direct connection to the SLC 500, MicroLogix and ControlLogix controllers, and PanelView terminals with DH-485 ports. It is compatible with the RSLinx Version 2.41 software and Windows98/2000/XP computers with USB ports and it is mounted using a DIN Rail. The 1747-UIC comes with two switch-selectable DH-485 ports, an RJ-45 (Ethernet) port for direct connection to the SLC 500, 5/01, 5/02, 5/03, AIC, and PanelView, and a single RS-232 DB9 port. It is powered by the USB port of a connected device and provides 500V DC circuit isolation between the power and the DH-485 common. The 1747-UIC has a Universal Serial Bus (USB) transfer speed of 12 Mbps with < 100 mA power consumption at the USB port and a converter overall Baud rate of 19.2 Kbps. The 1747-UIC’s operational temperature ranges between 0 and 60 °C (32 and 140 °F) and it has net dimensions of 109mm x 50.6mm x 31mm (4.29in x 1.99in x 1.22in).
Why choose us
1. We will provie you the product info and picuture
2.Large stock, fast delivery
3.Competitive prices and immdiate quotation
4.Professional service,professional technical support
5. Warranty time is one year.
6. Strict test machine before shipment.
7. We could help you to get any components which is difficult to get
