| Place of Origin | USA |
| Brand Name | AB |
| Certification | CO.CQ |
| Model Number | 1771-IXHR |

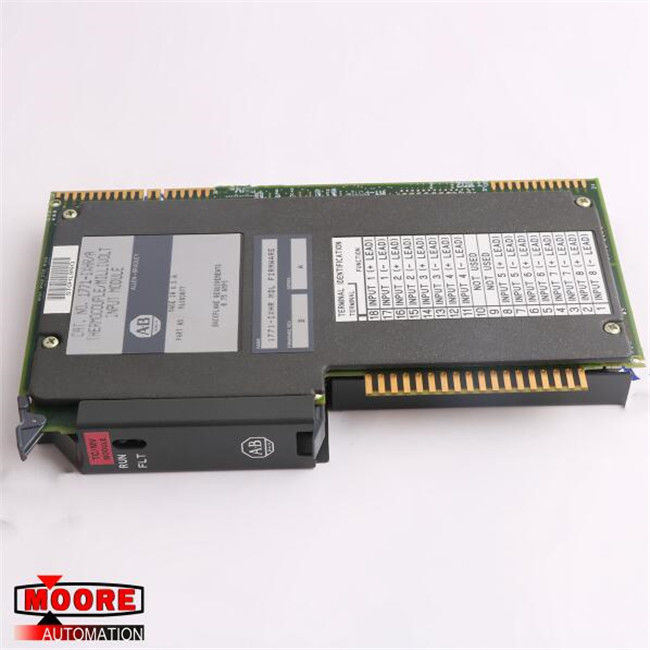

1771-IXHR 1771IXHR AB AB Analog Input Module
⇒ Click here for good price 1771-IXHR
| Brand/Manufacturer | AB/USA |
| Part Number |
1771-IXHR |
| Alternate Part Number | 1771-IXHR |
| Description | MOTOR SERVO |
| Dimennsions |
3.1x14.6x25.4cm |
| Weight | 0.68kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The AB 1771-IXHR is a PLC 5 Analog Input Module. It is a high-resolution thermocouple/millivolt input module to transfer input data words from its memory to the PLC processor’s data table and transfer configuration words using block transfer programming. The 1771-IXHR requires a single-slot for installation in a 1771 I/O chassis and needs no external power supply.
The 1771-IXHR module has 8 floating differential inputs for thermocouple or millivolt input ranges which includes types B, E, J, K, T, R, and S thermocouples and ±100 millivolts. Either 8 of the same type of inputs are allowed or 4 inputs each of 2 different types. The 1771-IXHR includes cold junction compensation with a range of 0-60°C and ±0.5°C accuracy. It has a selectable temperature scale of °C or °F with a temperature resolution of 0.1°C or 0.1°F and millivolt resolution of 1µV. It requires a backplane current load of 750mA at 5V and has a channel update time of 25ms per 8 channels. Its wiring is connected to the 1771-WI field wiring arm eliminating the need for disconnecting the wires when replacing the module. The 1771-IXHR has a maximum power dissipation of 4.255W and maximum thermal dissipation of 14.5 BTU/hr. Keying bands must be put between pins 20-22 and pins 24-26 to accept only this module.
The 1771-IXHR module has high and low-temperature alarms that are selectable by the user. It contains a green RUN indicator and a red FLT indicator at the front panel for power and fault status. At power-up, it performs self-diagnostics and reports status. The 1771-IXHR provides open-circuit detection in case the thermocouple fails. It automatically calibrates offset and gain for each channel, eliminating the need of potentiometers.
Why choose us
1. We will provie you the product info and picuture
2.Large stock, fast delivery
3.Competitive prices and immdiate quotation
4.Professional service,professional technical support
5. Warranty time is one year.
6. Strict test machine before shipment.
7. We could help you to get any components which is difficult to get
