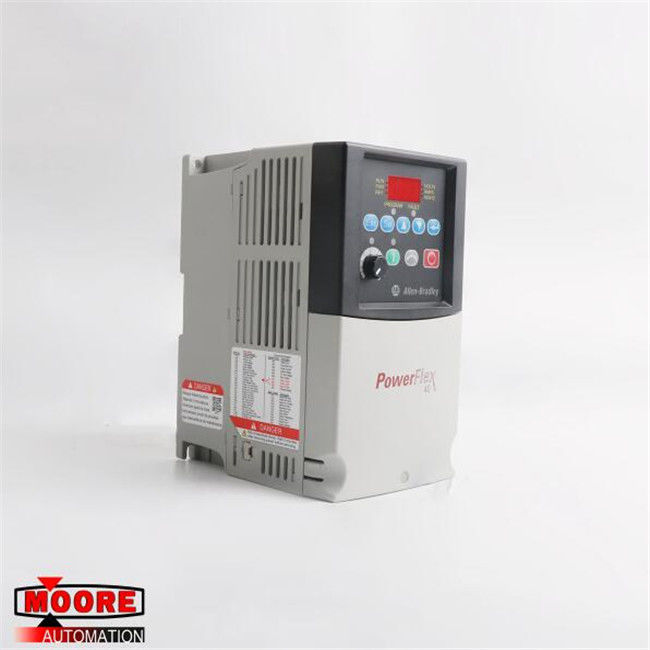

22B-D6P0N104 22BD6P0N104 AB AB PowerFlex 40 Drive Unit
⇒ Click here for good price 22B-D6P0N104
| Brand/Manufacturer |
AB/USA |
| Part Number |
22B-D6P0N104
|
| Alternate Part Number |
22B-D6P0N104 |
| Description |
MOTOR SERVO |
| Dimennsions |
10x13.5x18cm
|
| Weight |
1.72kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The AB 22B-D6P0N104 drive is an AC drive that has sensorless vector control to meet industrial mechanical demands for low-speed torque. This space-saving, compact model is part of the AB PowerFlex 40 adjustable frequency AC drive series. It features drive specifications of 480 Volts AC 50 to 60 Hertz 3-phase input voltage, 2.2 kW (3.0 Horsepower) power grade, and 6.0 Amps of output current. This panel mount drive comes with an IP20, NEMA/UL open type of enclosure with a B frame size. It enhances motor control performance with a wide variety of industrial applications such as fans, pumps, conveyors, machine tools, and material handling systems.
The StepLogic feature of the 22B-D6P0N104 drive allows it to operate as an independent position controller. By using the Logix control platform, it promotes premier integration with simplified parameter and tag programming and with greatly reduced development time. The programming and configuration can be done via software, a remote keypad, or the drive’s integral LCD keypad. The 22B-D6P0N104 AC drive is CE-marked and it has UL, CUL, EAC, and KCC approvals. It provides a robust Class 10 level of motor protection with an overload protection rating of 150% for 60 seconds, and one of 200% for 3 seconds. It has a 200% hardware limit and 300% instantaneous fault for safety against overcurrent. It has a minimum control ride-through time of 0.5 seconds. Reliable operation while starting and running is ensured with the ground fault protection feature. Because its MOV is movable to the ground, it is also compatible with ungrounded systems. Plus, it comes with an internal brake IGBT device, which is a brake resistor with dynamic braking capability.
