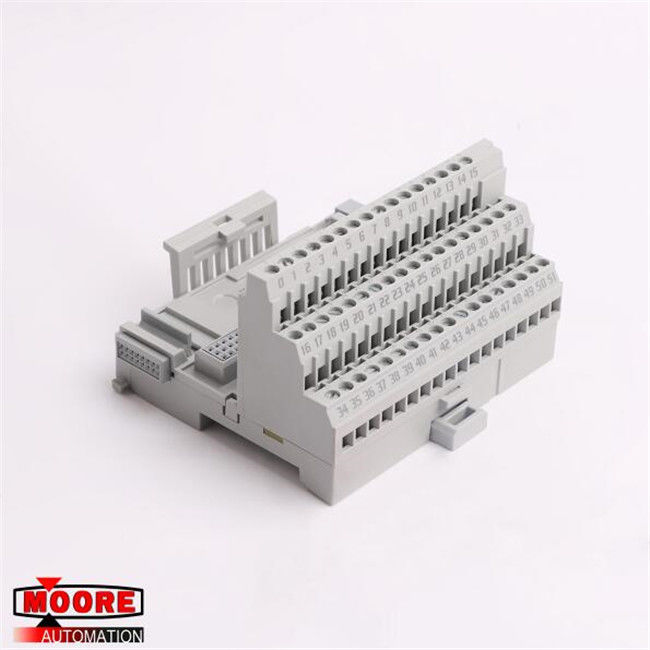

1794-TB32 1794TB32 AB AB Flex I/O Terminal Base
⇒ Click here for good price 1794-TB32
| Brand/Manufacturer |
AB/USA |
| Part Number |
1794-TB32
|
| Alternate Part Number |
1794-TB32 |
| Description |
MOTOR SERVO |
| Dimennsions |
9.5x10x6cm
|
| Weight |
0.2kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The 1794-TB32 Flex I/O 24 Volt AC/DC Terminal Base Unit by Allen Bradley is a terminal base unit designed specifically for 32 point modules to provide connection points for input/output wiring. It has a 32 I/O maximum connection capacity, with 8 common terminals and 8 Voltage terminals, and is used in a 31.2 Volt DC application. It has a current capacity of 10 A, and a FLEXBUS rating of 640 mA and 5 Volts DC, with 2 A maximum I/O terminal rating, and a V/COM terminal rating of 31.2 Volts DC/AC at 50 to 60 Hertz. It is capable of providing 50 Volts circuit isolation with Basic Type insulation tested at 2121 Volts DC for 1 minute between Field-Wiring Terminals to FLEXBUS.
The 1794-TB32 has both IEC T4 and T4A (North America) temperature codes and comes with an open style enclosure. It has an operational temperature range within -20 and 70 degrees Celsius (-4 and 58 degrees Fahrenheit) in a 5% to 95% non-condensing humidity level, and is stored at -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit). The 1794-TB32 is tested to maintain performance within standard specification at a 5 G operational vibration and a 30 G shock rating. It has approximate dimensions of 94 x 94 x 69 millimeters (3.7 x 3.7 x 2.7 inches) with the module installed on it and is c-UL-us and CSA certified.
Our service
100% full New - Original Factory Seal
Warranty: 12 months
Package: Original packing with cartons
Delivery time: Shipped in 3 days after payment
