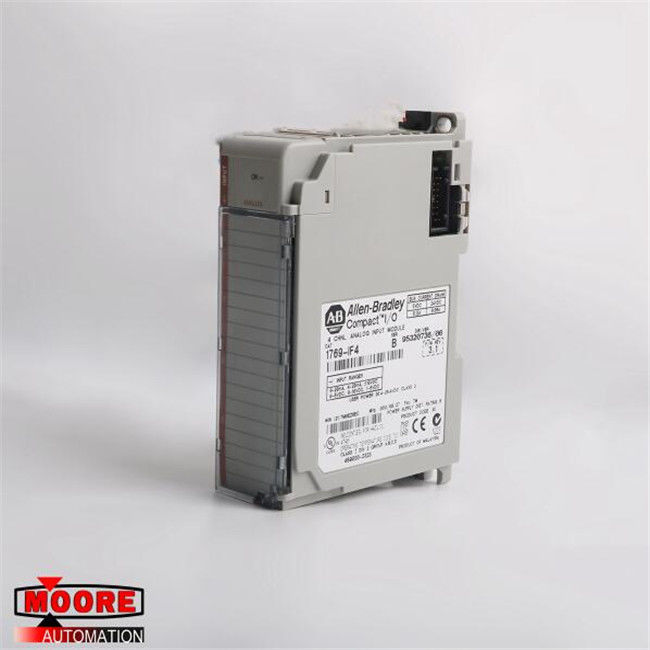

1769-IF4 1769IF4 AB AB Analog Input Module
⇒ Click here for good price 1769-IF4
| Brand/Manufacturer |
AB/USA |
| Part Number |
1769-IF4
|
| Alternate Part Number |
1769-IF4 |
| Description |
MOTOR SERVO |
| Dimennsions |
4x8.7x13cm
|
| Weight |
0.18kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The 1769-IF4 is an analog input module that is used with Allen Bradley’s MicroLogix 1500 and 1769 CompactLogix family of controllers. This module is configured using RSLogix 500 programming software when used with MicroLogix 1500 and RSLogix 5000 / Studio 5000 is used with 1769 CompactLogix controllers.
The Four (4) input channels of this module are individually configured to receive current and voltage signals at ranges of 0-21 mA; 3.2 - 21 mA for Current and ±10.5V DC, -0.5…10.5V DC, -0.5…5.25V DC, 0.5…5.25V DC for Voltage. Nominal current signals are 0-20 mA and 4-20mA and voltage signals available are +/10VDC, 1-5VDC, 0-5VDC, 0-10VDC. This module is integrated with an Analog to Digital (ADC) circuit with conversion type of Delta-Sigma. The module’s conversion resolution are 14 bits or unipolar and 14 bits plus sign or bipolar. The data processed by the module can be configured with data formats as engineering units, scaled for PID, percent range and raw data.
The 1769 Compact I/O modules can be fine-tuned with the provided parameters such as process alarms, input filters, real time sampling, alarm deadband and others. When a channel is enabled, the internal open-circuit detection is automatically enabled. This open circuit detection also activates the under-range error bit of the module. When the errors are detected by the module, it can be made known to the controller and display a non-fatal system error which may be further linked to a monitoring system such as a Human Machine Interface (HMI) or Supervisory Control and Data Acquisition (SCADA).
Main Products
The advantage brands and series of our company are as follows:
【Honeywell】Module DCS / PLC
【Emerson / Delta V】Module
【ABB】Input Output Module
【AB】Module / Touch Screen
【GE/Fanuc】IC69 Series PLC
【Bently Nevada】3500 system
【Yokogawa】Pressure Transmitter
【Yaskawa】Servo Drive / Servo Motor
If you need detailed technical information, welcome to contact us.
