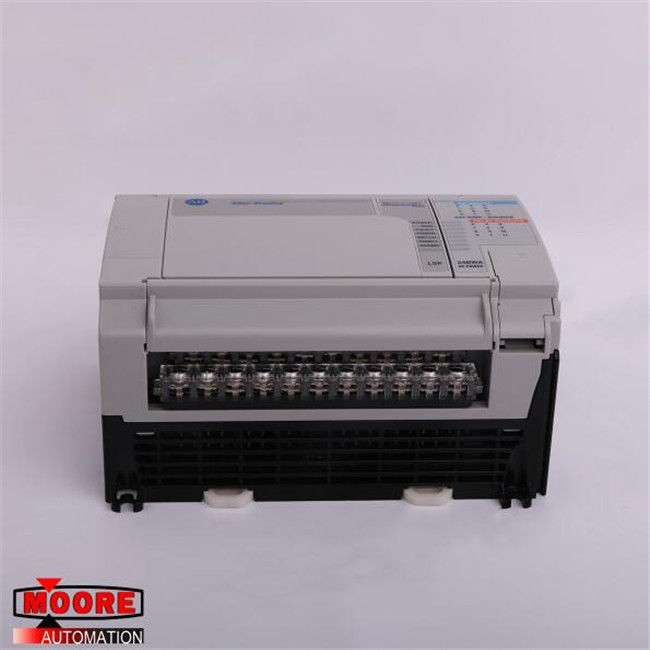

1764-24BWA 176424BWA AB AB MicroLogix 1500 24 Point Controller
⇒ Click here for good price 1764-24BWA
| Brand/Manufacturer |
AB /USA |
| Part Number |
1764-24BWA
|
| Alternate Part Number |
1764-24BWA |
| Description |
MOTOR SERVO |
| Dimennsions |
16.9x13.2x8.9cm
|
| Weight |
0.95kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The AB 1764-L24BWA is a part of the MicroLogix 1500 Programmable Logic Controller (PLC). This part number is a base unit that houses the necessary MicroLogix 1500 modules such as processors and memory module. When installed with a 1764 processor, the base unit becomes a functional PLC.
The 1764-L24BWA is an independently replaceable unit that allows the embedded I/O options to be maximized while the inventory stocking costs are minimized. It contains the power supply, communications port, and embedded inputs and outputs. The Bulletin 1764-24BWA Base Unit allows advanced communications with other devices via its Channel 0 port. It serves as an expansion I/O interface as required by an application. It comes with eight standard and four fast 24 Volts DC inputs and four 20 kHz high-speed inputs. The 1764-24BWA base requires a processor to function, it is compatible with either the 1764-LRP or 1764-LSP.
It has a 120 to 240 Volt AC-rated power line and 12 relays (two of which are isolated). It has an 88 VA power consumption, maximum load power of 22, and a power supply voltage of 85 to 265 Volts AC at 47 to 63 Hertz. It also has a 24 Volt DC Power Sensor specified at 400 mA or 400 µF capacitance maximum, powerful feature not available in other base units. The 1764-24BWA Base has product certifications for CE, C-Tick, UL, c-UL, and Class I Division 2 Hazardous Location operation. It slides together with the Bulletin 1764 Processor to form the complete controller. This assembly should not be mounted near power lines.
Why choose us
1. We will provie you the product info and picuture
2.Large stock, fast delivery
3.Competitive prices and immdiate quotation
4.Professional service,professional technical support
5. Warranty time is one year.
6. Strict test machine before shipment.
7. We could help you to get any components which is difficult to get
