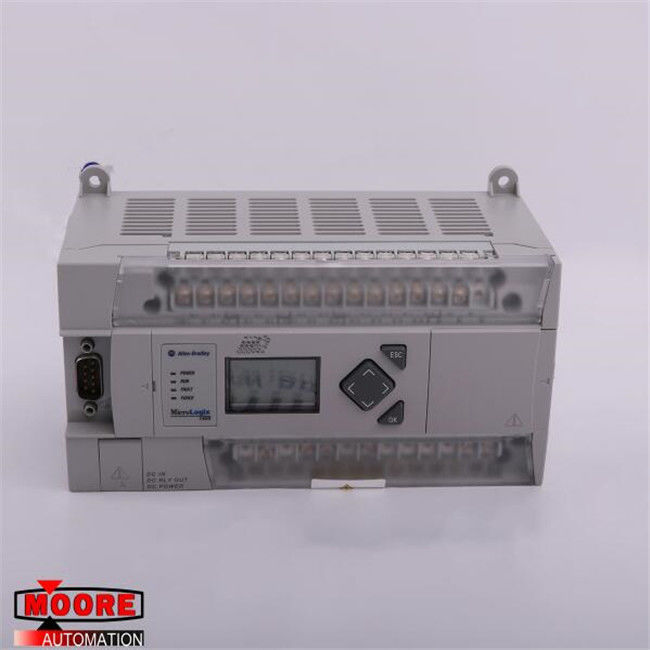

1766-L32BXB 1766-L32BXB AB AB MicroLogix 1400 32 Point Controller
⇒ Click here for good price 1766-L32BXB
| Brand/Manufacturer |
AB /USA |
| Part Number |
1766-L32BXB
|
| Alternate Part Number |
1766-L32BXB |
| Description |
MOTOR SERVO |
| Dimennsions |
18.1x11.1x9cm
|
| Weight |
0.85kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The AB 1766-L32BXB is a part of the MicroLogix 1400 Programmable Logic Controller series. It features EtherNet/IP, online editing capabilities, and a built-in LCD. The LCD features a backlight for setting network configuration and viewing the controller and I/O status. The 1766-L32BXB controller requires 24 Volts DC input power and has battery-backed RAM. It supports 32 digital I/O points which are Twelve (12) digital fast 24 Volts DC inputs, Eight (8) digital 24 Volts DC inputs, Six (6) relay outputs, Three (3) fast 24 Volts DC outputs, and Three (3) normal 24 Volts DC outputs. It has a dimension of 3.5 x 7.08 x 3.43 inches and a weight of 2 pounds.
For communication, it has an isolated RS-232/485 port, an Ethernet port, and a non-isolated RS-232 port. It also has an embedded real-time clock to provide a reference for applications that need time-based control. The 1766-L32BXB uses RSLogix 500/Micro programming software (Version 8.1 and above) for programming. For installation, it has Panel or DIN-Rail mounting options and an open enclosure. It is suitable for use in clean, dry, industrial environments with circuits that do not exceed Over Voltage Category II. The 1766-L32BXB controller has various enhanced features like an Ethernet port with DNP3 protocol support and email capabilities. It also has 2 Serial ports with DH485/DF1/Modbus RTU/DNP3/ASCII protocol support, up to 6 embedded 100 kHz high-speed counters (on DC controllers), and a 20 KB memory for user data.
Why choose us
1. We will provie you the product info and picuture
2.Large stock, fast delivery
3.Competitive prices and immdiate quotation
4.Professional service,professional technical support
5. Warranty time is one year.
6. Strict test machine before shipment.
7. We could help you to get any components which is difficult to get
