1763-L16BWA 1763L16BWA AB AB MicroLogix 1100 16 Point Controller
⇒ Click here for good price 1763-L16BWA
| Brand/Manufacturer |
AB/USA |
| Part Number |
1763-L16BWA
|
| Alternate Part Number |
1763-L16BWA |
| Description |
MOTOR SERVO |
| Dimennsions |
11x11.1x8.6cm
|
| Weight |
0.6kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details

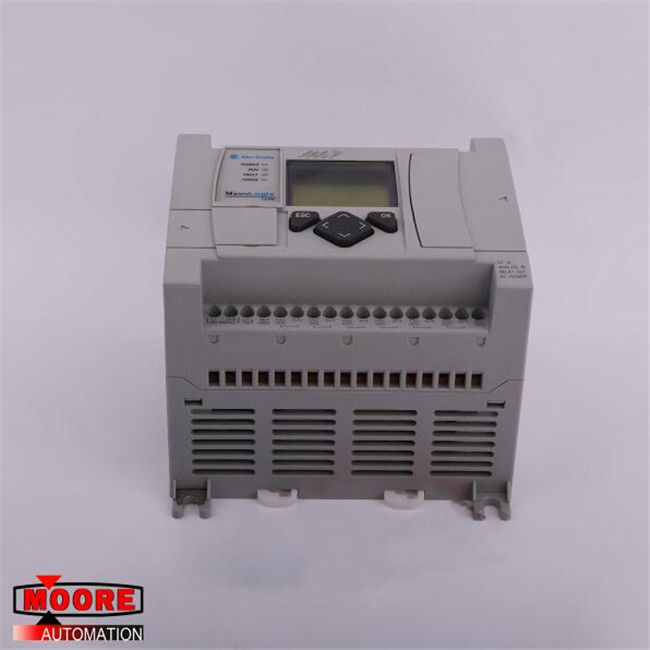

The 1763-L16BWA MicroLogix 1100 Programmable Controller by AB is an industrial programmable controller with a total of Eighteen (18) I/O points. It consists of Ten (10) 24VDC sinking or sourcing digital inputs, Two (2) Analog Inputs and Six (6) relay outputs. This controller requires an input power supply of 100-240VAC.
The input channel has an OFF-state voltage range between 0 and 5 Volts DC with a 1.5 mA maximum OFF state leakage current and a Nominal impedance of 3.1 k?. The Analog inputs s compatible for 0 to 10 VDC, with an input resolution of 10 bits. The 1763-L16BWA’s analog input also has +/-0.5% full-scale non-linearity, +/-0.5% accuracy, 210 k? voltage impedance and a 10.5 Volt DC input voltage protection.
The 1763-L16BWA’s outputs are Six (6) isolated relay outputs with a 3A current per group and a maximum OFF/ON and ON/OFF response time of 10 millimeters. The relay output has a relay contact with a rating of 1.2 MAKE current capacity, 1.0A continuous current, and 28VA make power output. Overall, the 1763-L16BWA has an inrush current of 25A for 8 milliseconds at 120 Volts AC and 40A for 4 milliseconds at 240 Volts AC with 52 VA overall power consumption. The module’s ambient operational temperature ranges between -20 and 65 degrees Celsius (-4 and 149 degrees Fahrenheit) at 5 to 95% non-condensing relative humidity. It is built to withstand an operational shock of 30G and a vibration of 15G at 50 Hertz. It measures 3.5 x 4.09 x 3.43 inches and weighs approximately 2 pounds.
Why choose us
1. We will provie you the product info and picuture
2.Large stock, fast delivery
3.Competitive prices and immdiate quotation
4.Professional service,professional technical support
5. Warranty time is one year.
6. Strict test machine before shipment.
7. We could help you to get any components which is difficult to get
