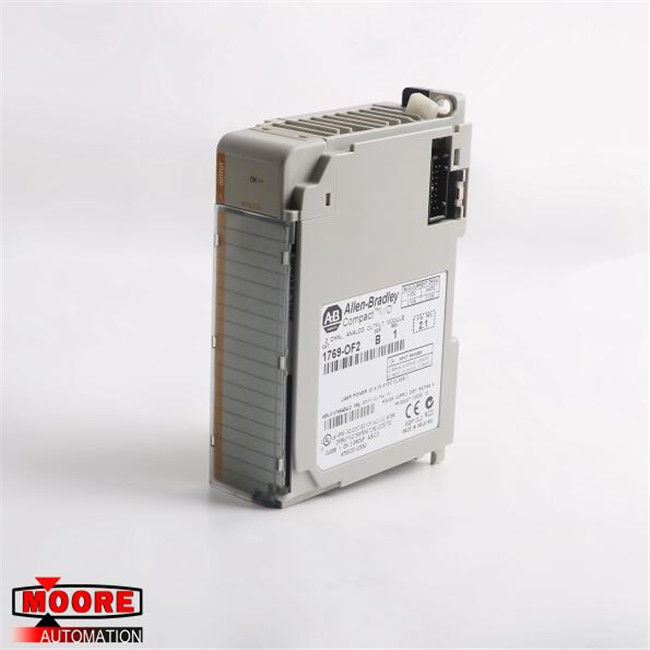

1769-OF2 1769OF2 AB AB Compact Voltage/Current Output Module
⇒ Click here for good price 1769-OF2
| Brand/Manufacturer |
AB/USA |
| Part Number |
1769-OF2
|
| Alternate Part Number |
1769-OF2 |
| Description |
MOTOR SERVO |
| Dimennsions |
3.8x8.7x13.1cm
|
| Weight |
0.18kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The 1769-OF2 compact voltage/current output module is an output module by AB with 2 single-ended output modules. It has a full voltage range of 0 to 10.5 Volts with an output of 0 to 10 Volts. It is a 14-bit unipolar/bipolar resolution output module with a draw current of 120 mA at 5.1 Volts. The 1769-OF2 current output module has a Delta/Sigma converter type and a 2.63 Watt heat. It has a 2.5-millisecond conversion rate on all channels and a 63% step response at 2.93 milliseconds. The 1769-OF2 has a current load of 10 mA and a restive load on-current output of 0 to 500Ω (inclusive of wire resistance). It has a load-on voltage output range greater 1 kΩ at 10 Volts DC and an inductive load per current output of 0.1 mH.
The 1769-OF2 has a capacitive load per output voltage of 1 μF. It requires no field calibration and an accuracy margin of ±0.5% (Voltage full range at 25 degrees Celsius or 77 degrees Fahrenheit), and a ±0.35% (Current full range at 25 degrees Celsius (77 degrees Fahrenheit)). The 1769-OF2 compact voltage/current output module has a module error boundary around 0.8%, and an accuracy drift of ±0.0086% per degree Celsius. The output module also has a repeatability and nonlinearity margin of ±0.05%, and an output impedance of 15 Ω. The 1769-OF2 has a ±0.05% offset error margin and a 10ms time to detect an open wire condition. It equipped with short-circuit (21 mA maximum) and over-voltage protection. It has a copper wire with a 22 by 14 AWG solid size and single slot width. The 1769-OF2 has a weight of 0.65 pounds and dimensions of 4.65 by 1.38 by 3.43 inches.
