2713P-T7WD1 2713PT7WD1 AB AB CoPanelView 5310 Terminal
⇒ Click here for good price 2713P-T7WD1
| Brand/Manufacturer |
AB /USA |
| Part Number |
2713P-T7WD1
|
| Alternate Part Number |
2713P-T7WD1 |
| Description |
MOTOR SERVO |
| Dimennsions |
23.8x7x18cm
|
| Weight |
1.1kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details

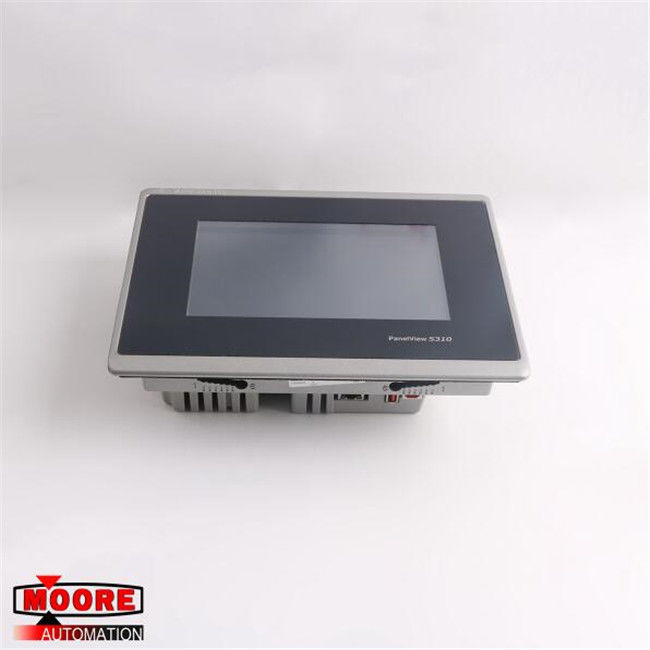

The AB 2713P-T7WD1 PanelView 5310 terminal has a 7-inch widescreen color thin film transistor, liquid-crystal display screen that features a touch input. The display comes with 24-bit color graphics and it has an 800 x 480 WVGA display resolution. Its aspect ratio is 5:3 and its screen area is 6 x 3.6 inches. The terminal’s display also has a non-replaceable backlight with a 3W typical power consumption and a minimum lifespan of 50,000 hours at 104 oF and at half-brightness. Note that the analog-resistive touchscreen has a 1-million press actuation rating.
The 2713P-T7WD1 has 1 GB RAM, and a non-volatile 500 MB user-memory you can use for storing projects. You can expand the 2713P-T7WD1 terminal’s storage by placing a 1784-SDx memory card in its SD card slot. It also has 3 communication ports: a 10/100 Ethernet port, a Type A high-speed USB 2.0 host port, and a Type B high-speed USB 2.0 device port. A red/green status indicator is also included on the 2713P-T7WD1.
Its non-condensing ambient humidity range is 5-95%, its operating temperature is 32-122 oF, and its storage temperature is -13-158oF. The 2713P-T7WD1’s input voltage is 18-30V DC, with a nominal voltage of 24V DC. Its typical inrush current is 15A and its power dissipation is 31 BTU/hr. The 2713P-T7WD1’s maximum power consumption is 13W or 0.54A at 24V DC, and its typical power consumption is 9W. The 2713P-T7WD1 weighs 6lbs.
