| Place of Origin | USA |
| Brand Name | AB |
| Certification | CO.CQ |
| Model Number | 1771-ASB |

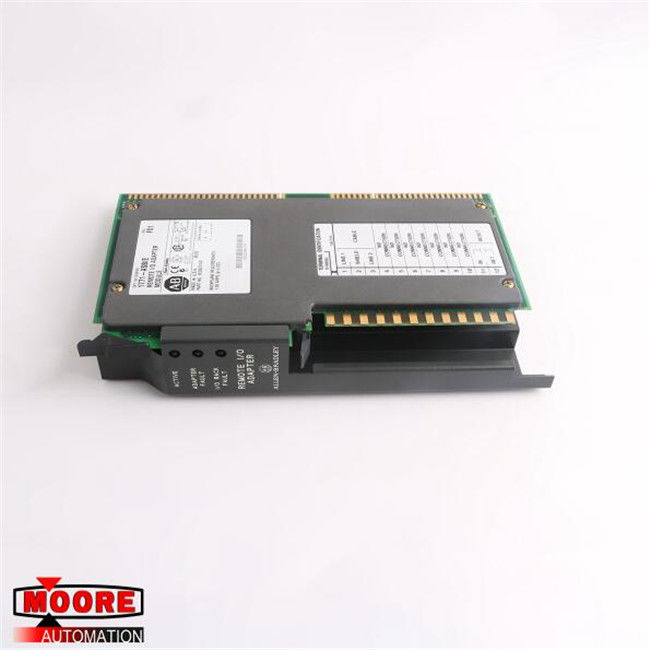

1771-ASB 1771ASB AB AB Remote I/O Adapter Module
⇒ Click here for good price 1771-ASB
| Brand/Manufacturer | AB /USA |
| Part Number |
1771-ASB |
| Alternate Part Number | 1771-ASB |
| Description | MOTOR SERVO |
| Dimennsions |
4.5x14.5x27.5cm |
| Weight | 0.74kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The AB 1771-ASB is a PLC 5 Universal Remote I/O Adapter Module. It interfaces with I/O modules in a 1771 I/O chassis with a Remote I/O scanner port for a processor over an I/O link. Using it instead of direct wiring reduces startup, installation, and maintenance costs by the I/O being closer to the actuators and sensors. It is compatible with 32 I/O-adapter devices via the I/O link and it uses 82 Ohm or 150 Ohm terminating resistor.
The 1771-ASB module has a communication rate of 57.6 Kbps, 115 Kbps, and 230 Kbps and it weighs 1.9 pounds. It has a backplane current load of 1 A at 5 Volts DC and a maximum power dissipation of 5.2W. It requires a remote I/O adapter port for connection. For installation, it must be mounted in the left-most slot of the 1771 chassis with the I/O modules controlled by a PLC 5 processor. For wiring, the 1770-CD Belden 9463 or equivalent cable must be used. The 1771-ASB module has Active, Adapter Fault, and I/O Rack fault diagnostic Indicators, 2 switch assemblies, and a field wiring arm. It provides faster data transmission and backplane scanning up to 2500 feet at 230.4K Baud. It supports serial communication and reads/writes data in parallel form. It supports 4, 8, 12, 16, or 32-slot I/O chassis and 1 and 2-slot I/O addressing. The 1771-ASB improves scan time and I/O image space savings by scanning all slots except the last 4. It eases troubleshooting with its enhanced diagnostics features.
Why choose us
1. We will provie you the product info and picuture
2.Large stock, fast delivery
3.Competitive prices and immdiate quotation
4.Professional service,professional technical support
5. Warranty time is one year.
6. Strict test machine before shipment.
7. We could help you to get any components which is difficult to get
