| Place of Origin | USA |
| Brand Name | AB |
| Certification | CO.CQ |
| Model Number | 1771-WS |

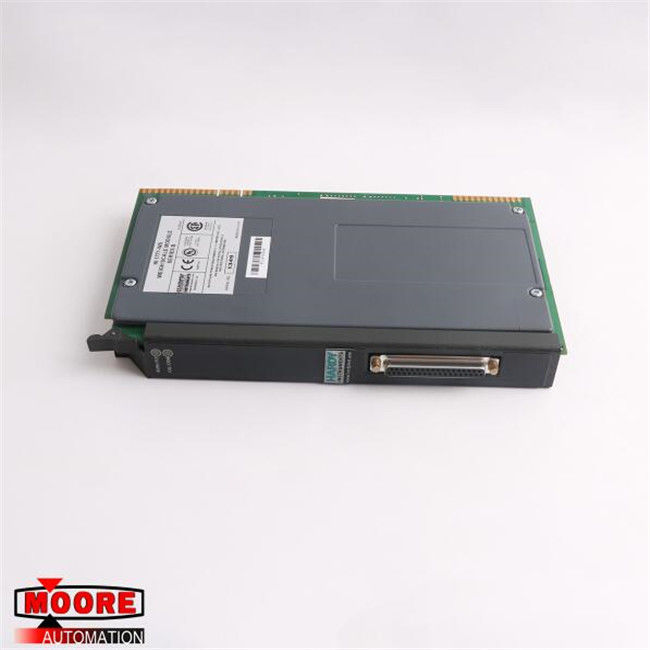

1771-WS 1771WS AB AB Weigh Scale Module
⇒ Click here for good price 1771-WS
| Brand/Manufacturer | AB/USA |
| Part Number |
1771-WS |
| Alternate Part Number | 1771-WS |
| Description | MOTOR SERVO |
| Dimennsions |
3x15.2x25.8cm |
| Weight | 0.74 kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The 1771-WS is a weigh scale module that is manufactured and designed by AB. This module belongs to the 1771 series. The AB 1771-WS weigh scale module’s main function is to receive and read values from one or more industrial load cells. When an external power supply is installed, this module can be used with up to 8 load cells. The mechanism that is used is based on the reception of calibration values from the data table. Once received, these values are block-transferred by the module to a PLC-5 processor. The AB 1771-WS weigh scale module operates with a power supply of 5 Volts DC +/- 5%, a continuous backplane input voltage of 40 Volts DC, and a backplane current load of 1.50 Amps at a specific voltage of 1000 Volts DC.
The AB 1771-WS weigh scale module uses the Windows 95, 98, Millennium, NT, 2000; RSLogix and the RSLinx software. When it comes to the surrounding environment, the AB 1771-WS weigh scale module can be exposed to an operating temperature range of 0 to 60 degrees Celsius and a humidity range of 0 to 90% without condensation. The AB 1771-WS weigh scale module is highly affected by electrostatic discharge, and under circumstances where electrostatic discharge is present, users need to make sure to handle the module from the front while using an approved wrist strap grounding device or after having touched a grounded object in order to discharge themselves of static before starting the installation process. The AB 1771-WS weigh scale module features 2 bi-color indicator lights, located in the front panel. The colors included are red and green and these define the Run/Fault and Calibrate/Communication functions.
Our service
100% full New - Original Factory Seal
Warranty: 12 months
Package: Original packing with cartons
Delivery time: Shipped in 3 days after payment
