2711-K3A5L1 2711K3A5L1 AB AB PanelView 300 Monochrome Keypad

2711-K3A5L1 2711K3A5L1 AB AB PanelView 300 Monochrome Keypad

⇒ Click here for good price 2711-K3A5L1

Contact Us

Email: miya@mvme.cn (CLICK)

QQ: 2851195450

Tel: 86-18020776792(CLICK)

Skype:miyazheng520(CLICK)

Product Details

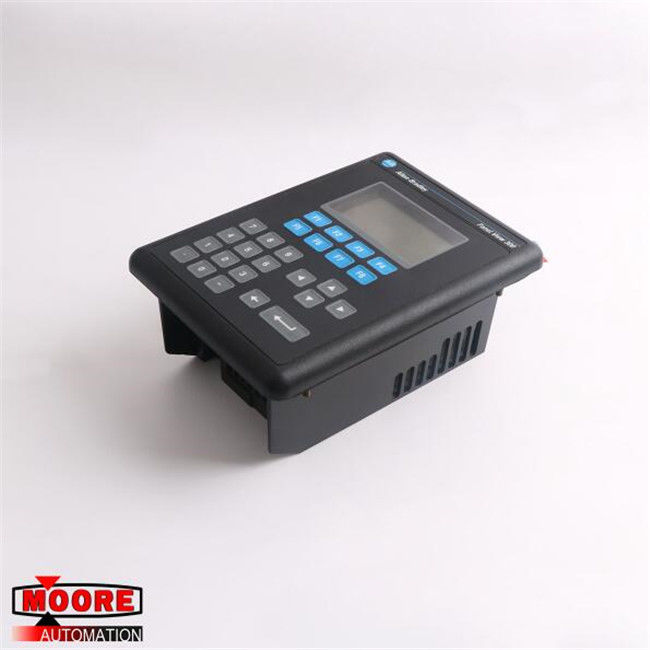

The PanelView Standard 300 is an electronic operator interface that provides functionality based on a color, grayscale or monochrome display and shows pixel graphics capabilities. The PanelView Standard 300 is available in several varieties based on sizes and configurations to meet specific application requirements. All these variations improve operator productivity and simplify programming. The 2711-K3A5L1 Panelview 300 is a product by AB that has an operator input keypad with eight function keys (F1 to F8) and a 3-inch LCD monochrome color display, with an LED backlight. It has a display dimension of 73 x 42 millimeters (2.87 x 1.67 inches), and a display resolution of 128 x 64, with a 100,000-hour, LED back-light standby life. The 2711-K3A5L1 comes with an irreplaceable battery, an internal memory of 240 KB, and a runtime application memory of 170 KB which runs on PanelBuilder32 software. It has a DH-485 (RS-232) communication port and supports ATA Memory card. The input voltage of the 2711-K3A5L1 is between 18 to 32 Volts DC (24 Volts DC nominal), with a maximum power consumption of 10 Watts (0.42 amps at 24 Volts DC). With a weight of 673 grams (1.48 pounds), the 2711-K3A5L1 has a dimension of 197 x 140 x 82 millimeters (7.76 x 5.53 x 3.21 inches) (length, breadth, and height). The 2711-K3A5L1 has an operating temperature between 0 and 55 degrees Celsius (32 and 131 degrees Fahrenheit), a storage temperature between -20 and 85 degrees Celsius (-4 and 185 degrees Fahrenheit), and a working relative humidity range between 5 to 95% noncondensing at 0 to55 °C (32 to 131 degrees Fahrenheit) working temperature. It has a Shock rating of 30g and operational vibration of 2g.
