Product Details

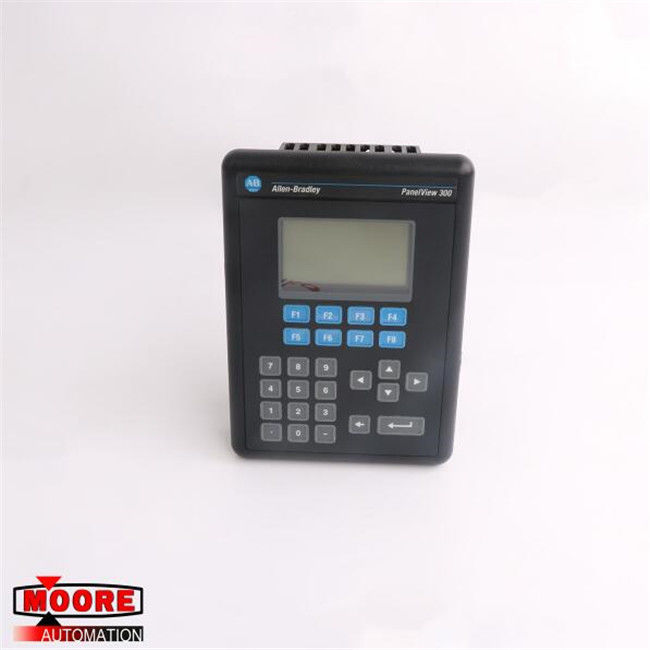

The PanelView Standard 300 is an electronic operator interface that provides functionality with a color, grayscale or monochrome display and shows pixel graphics capabilities. The PanelView Standard 300 is available in several sizes and configurations to meet specific application requirements. All these variations improve operator productivity and simplify programming. The 2711-K3A2L1 Panelview 300 is an AB product that has an Operator input keypad with eight function keys (F1 to F8) and an LCD monochrome color display, with an LED backlight. It has a display dimension of 73 x 42 millimeters (2.87 x 1.67 inches), and a display resolution of 128 x 64, with a 100,000-hour, LED backlight standby life. The 2711-K3A2L1 has an irreplaceable battery, and a runtime application memory of 170 KB, which runs on a PanelBuilder32 software. It has a DH-485 (RS-232) communication port and supports an ATA Memory card. The input voltage of the 2711-K3A2L1 is between 18 to 32 Volts DC (24 Volts DC nominal), with a maximum power consumption of 10 Watts (0.42 amps at 24 Volts DC).

With a weight of 673/1.48 grams/pounds, the 2711-K3A2L1 has a dimension of 197 x 140 x 82/7.76 x 5.53 x 3.21 millimeters/inches (length, breadth, and height). The 2711-K3A2L1 has an operating temperature between 0 to 55 degrees Celsius (32 to 131 degrees Fahrenheit), a storage temperature between -20 to 85 degrees Celsius (-4 to 185 degrees Fahrenheit), and a working relative humidity range between 5 to 95% noncondensing at 0 to 55 degrees Celsius (32 to 131 degrees Fahrenheit) working temperature. It has a shock rating of 30 g, and operational vibration of 2 g. The approximate shipping weight and dimensions are 3 pounds and 11 x 8 x 6 inches and the most common Series are A and B and the most common firmware include 4.00-4.48.
