2711P-RDK15C 2711PRDK15C AB AB PanelView Plus Display Module
⇒ Click here for good price 2711P-RDK15C
| Brand/Manufacturer |
AB /USA |
| Part Number |
2711P-RDK15C
|
| Alternate Part Number |
2711P-RDK15C |
| Description |
MOTOR SERVO |
| Dimennsions |
47x5.5x33cm
|
| Weight |
3.66kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details

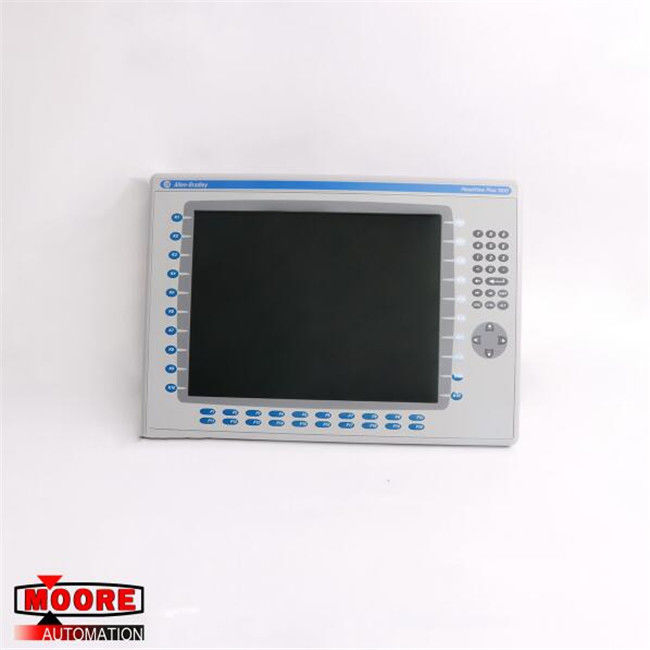

The 2711P-RDK15C is a PanelView terminal that belongs to the PanelView Plus 1500 series. It is manufactured and designed by AB. The AB 2711P-RDK15C PanelView terminal features a keypad and a 15.0 inches color display. The resolution of the display is 1024 x 768 pixels and it has a high-bright luminance. The keypad’s keys include function, numeric, and navigation keys. This terminal requires a single power supply of 24 (18 to 32) Volts DC and 70 Watts maximum (2.9 Amps at 24 Volts DC). This external supply must be used only for the terminal and it must not be grounded because it is internally protected. The power consumption of this terminal is 160 VA maximum and its heat dissipation is 240 BTU per hour.
Prior to the installation and mounting of the AB 2711P-RDK15C PanelView terminal, users must determine the kind of enclosure that suits the terminal best, depending on the kind of environment it will be exposed to. It is important to protect the screen from ultraviolet or infrared rays since these will significantly decrease the life of the screen. The 2711P-RDK15C is not recommended to place the terminal on the south or west side of the cabinet, or it may absorb too much heat during the day. It is also recommended to leave minimum clearances on each side of the terminal to allow for an adequate level of ventilation. The temperature around the terminal should not exceed 55 degrees Celsius. This terminal has an approximate weight of 4.6 kilograms.
Why choose us
1. We will provie you the product info and picuture
2.Large stock, fast delivery
3.Competitive prices and immdiate quotation
4.Professional service,professional technical support
5. Warranty time is one year.
6. Strict test machine before shipment.
7. We could help you to get any components which is difficult to get
